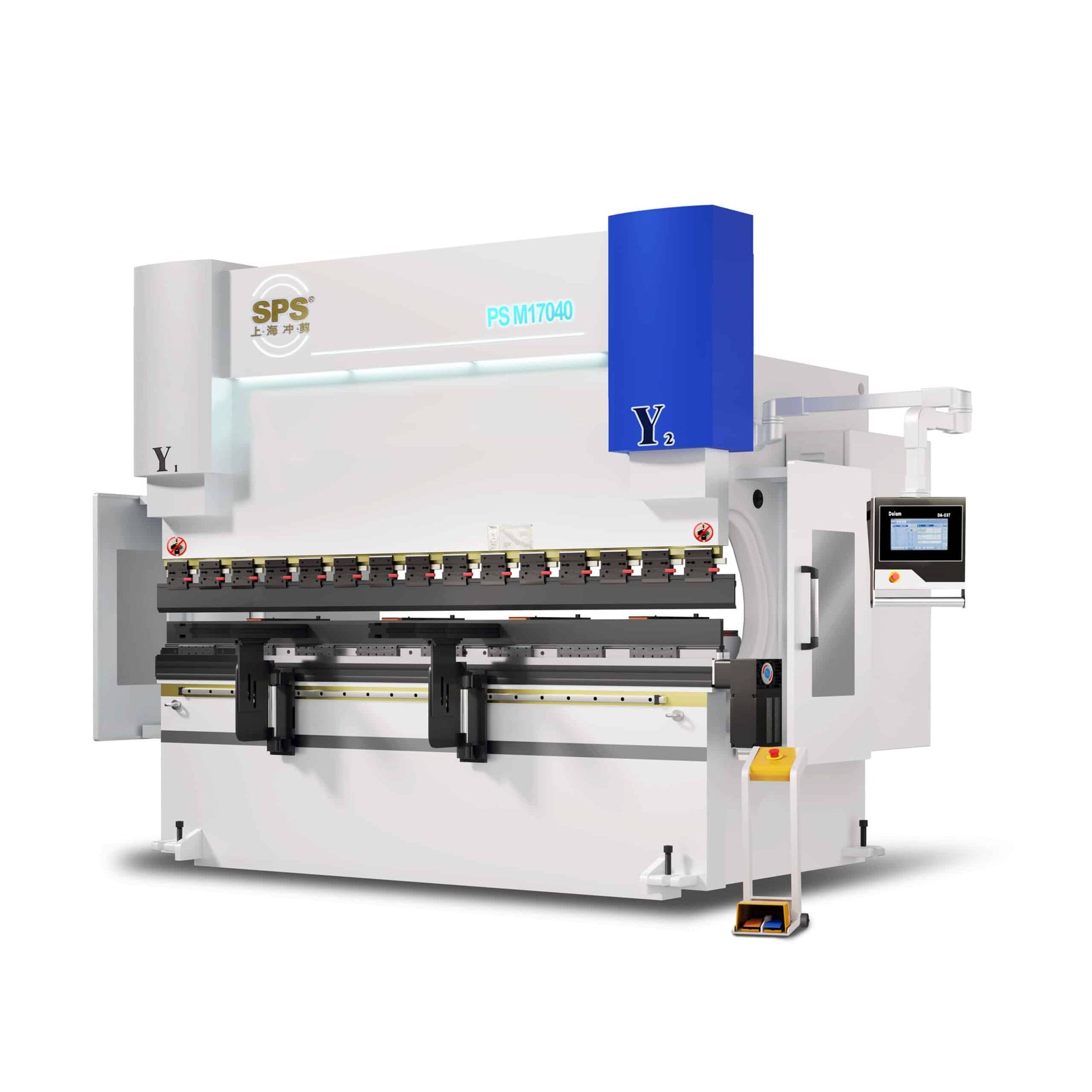

We offer a complete range of CNC press brakes for sheet metal bending, including electro-hydraulic synchronous press brakes, torsion bar press brakes, tandem (dual-machine) press brakes, and customized special-purpose press brakes.
Our main series include PSB, PSM, PSN, PSD, PSA, and PSS, covering light-duty to heavy-duty industrial applications.

Press brake tonnage depends on material type, material thickness, bending length, and die opening.
As a general reference:

Tonnage ≈ (650 × S² × L) / V

Where:

• S = material thickness (mm)

• L = bending length (m)

• V = die opening (mm)

Our engineers can calculate the exact tonnage and recommend the most suitable model based on your actual production needs.

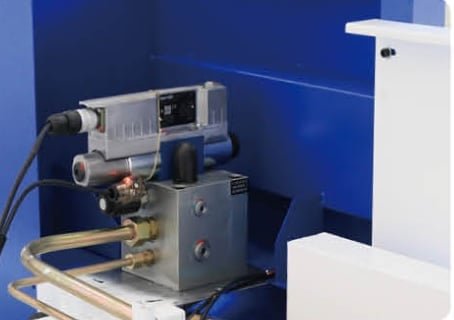

Electro-hydraulic synchronous press brakes use servo valves and closed-loop control systems to achieve higher accuracy, better repeatability, and stable synchronization, making them suitable for precision and heavy-duty bending.

Torsion bar press brakes use mechanical synchronization and are more cost-effective, ideal for standard bending operations with moderate accuracy requirements.

Our CNC press brakes can achieve:

• Slider positioning accuracy: ±0.01 mm

• Bending angle accuracy: ±0.1° (depending on configuration and tooling)

Accuracy may vary based on material properties, tooling, and operator settings.

Our press brakes are suitable for bending a wide range of materials, including:

• Mild steel

• Stainless steel

• Aluminum

• Copper

• Brass

• Galvanized steel

Maximum thickness depends on machine tonnage and bending length.

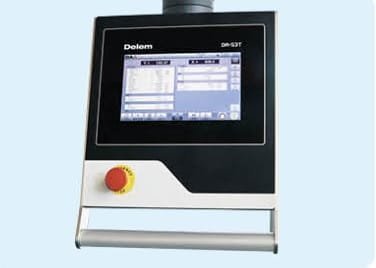

We support internationally recognized CNC control systems, including:

• DELEM (Netherlands)

• ESA (Italy)

• CYBELEC (Switzerland)

For entry-level models, simplified controllers are also available.

Yes. We offer long-term technical support, including:

• Remote troubleshooting

• Spare parts supply

• Operation guidance

• Maintenance advice

Our goal is to ensure stable and reliable machine operation throughout its service life.
