Open Single Table Sheet Laser Cutting Machine

Open Single Table Sheet Laser Cutting Machine

The Open Single Table Sheet Laser Cutting Machine is engineered for precision and speed, designed for efficient and accurate cutting of a variety of materials in industrial applications.

Get a Quote
Facebook Instagram Linkedin Youtube

The Open Single Table Sheet Laser Cutting Machine offers superior performance for industries that require high-speed and high-precision cutting. With its open table design, it is ideal for projects requiring easy material handling. This machine features an advanced CNC control system, enabling precise and repeatable cutting, suitable for a range of materials such as metals and non-ferrous metals.

Open Single Table Sheet Laser Cutting Machine Technical Parameters

Model 3015 4015 6015 4020  6020  6322  6325  8325  13025
Working Area (cm) 30*15 40*15 60*15 40*20 60*20 63*22 63*25 83*25 130*25
Table Load (Kg) 2000 2500 3500 3500 5000 5500 12500 16500 26000
Overall Dimensions (cm) 49*23*19 59*23*19 79*23*19 59*29*19 79*28*19 83*31*19 83*36*22 103*36*22 157*36*22
Max. Acceleration 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.2G 1.2G 1.2G
Max. Linkage Speed (m/min) 120 120 120 120 120 120 120 120 120
Max. Positioning Accuracy (m/min) 100 100 100 100 100 100 100 100 100
X Axis Travel (mm) 1520 1520 1520 2020 2020 2220 2520 2520 2520
Y Axis Travel (mm) 3050 4050 6050 4050 6050 6350 6350 8350 13050
Z Axis Travel (mm) 140 140 140 140 140 150 150 150 150
X, Y Axis Positioning Accuracy (mm/m) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
X, Y Axis Repositioning Accuracy (mm/m) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02

BLS/BLSD/BLSF Series Sheet Control System

Laser Source 3000w 6000w 12000w 20000w (Standard) 20000w (High) 30000w 40000w 60000w
Laser Cutting Head BLT310 BLT421S BLT442 BLT462 BLT663H BLT683H BLT6103H BLT6120H
Bus Controller FSCUT-2000E FSCUT-4000E FSCUT-6000 FSCUT-6000 FSCUT-8000C FSCUT-8000C FSCUT-8000C FSCUT-8000C
Operating Software CypCutE CypCutPro CypCutPro CypCutPro HypCut HypCut HypCut HypCut
Nesting Software Cypnest Starter Cypnest Starter Cypnest Starter Cypnest Starter Cypnest Professional Cypnest Professional Cypnest Professional Cypnest Professional



 Open Single Table Sheet Laser Cutting Machine Product Configuration

 System Model BLSD Models
3015  4015 6015 4020 6020 6322  6325 8325 13025
Mechanical System Bed Steel Plate Welding
Beam Aviation Aluminum Beam
Z-axis Slide Module
Motion System Servo Motor and Drive BOCU, CHINA
Gear Reducer TECHMECH,CHINA
Guide Rail GAUSSCN, GERMANY @ HIWIN, TAIWAN CHINA
Rack GAUSSCN, GERMANY @ APEX, TAIWAN CHINA
Bellow Cover
Cable Carrier
Optical System Laser Source Maxphotonics, CHINA @ RAYCUS, CHINA
Laser Cutting Head BOCHU, CHINA
Control System Bus Controller BOCHU, CHINA
Operating Software BOCHU, CHINA
Nesting Software BOCHU, CHINA
Electrical System Electrical SCHNEIDER, FRANCE
Voltage Stabilizer
Industrial PC
Display 24 inches
Remote Controller BOCHU, CHINA
Cooling System Water Chiller HANLI, CHINA @ S&A, CHINA @ TONGFEI, CHINA
Cabinet Heat Exchanger TONGFEI, CHINA
Gas Supply System Pneumatic Valve Block SMC, JAPAN (3000W-6000W); RAYCEE, CHINA (12000W-30000W); AVENTICS, GERMANY (40000W-60000W)
Pressure Alarm
Dust Extraction System Zoned Dust Removal Structure
Centrifugal Fan
Safety System Emergency Stop


Lubrication System

 Lubricating Device Automatic
Oil Collection Device
Wear Parts Wear Parts Kit Protective lens, Nozzle, Ceramic ring
Optional Air Compressor

Related products

Machine Configuration Overview

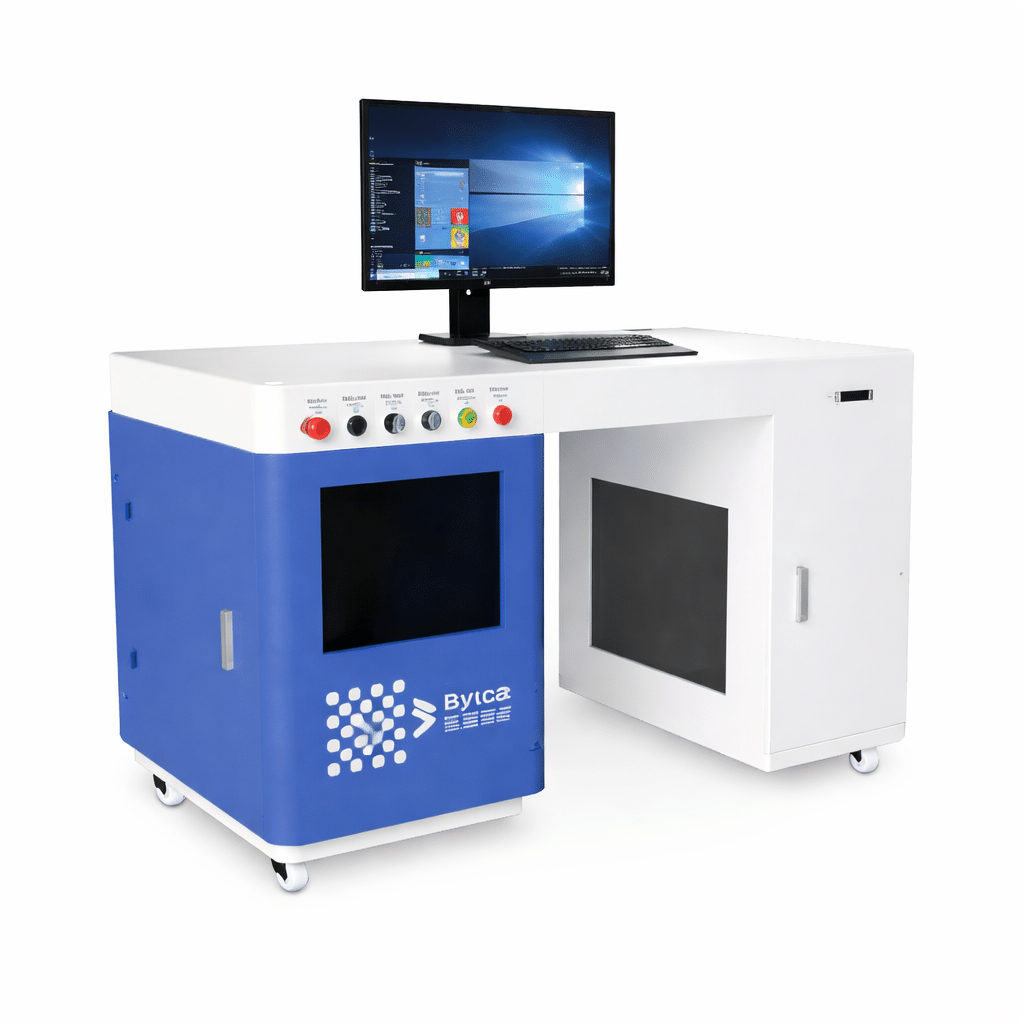

Electrical cabinet for laser cutting machine ensuring optimal heat dissipation and EMI protection.

Separated ElectricalCabinet

Superior Heat & EMI Dissipation for Maximum Stability：The separated design isolates heat and noise sources, ensuring cool operationand immunity to EMI for unwavering stability and minimized downtime duringintense processing.

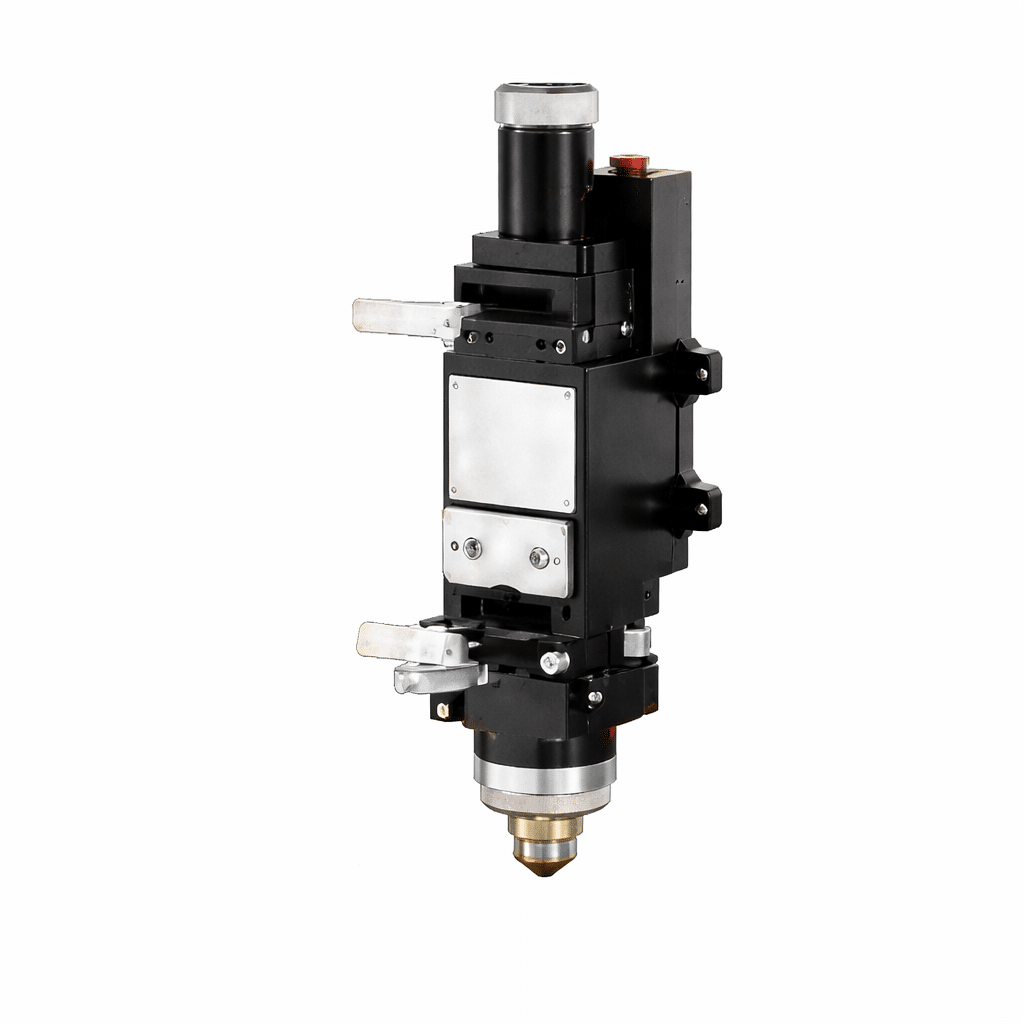

Laser cutting head with automatic focusing system for consistent cutting quality.

Laser Cutting Head

Precise focusing maintains consistent cutting quality：The cutting head is used to focus the laser beam and precisely project it onto thematerial surface. It is usually equipped with an automatic focusing system and a nozzledesign to adapt to different materials and thicknesses, ensuring cutting quality.

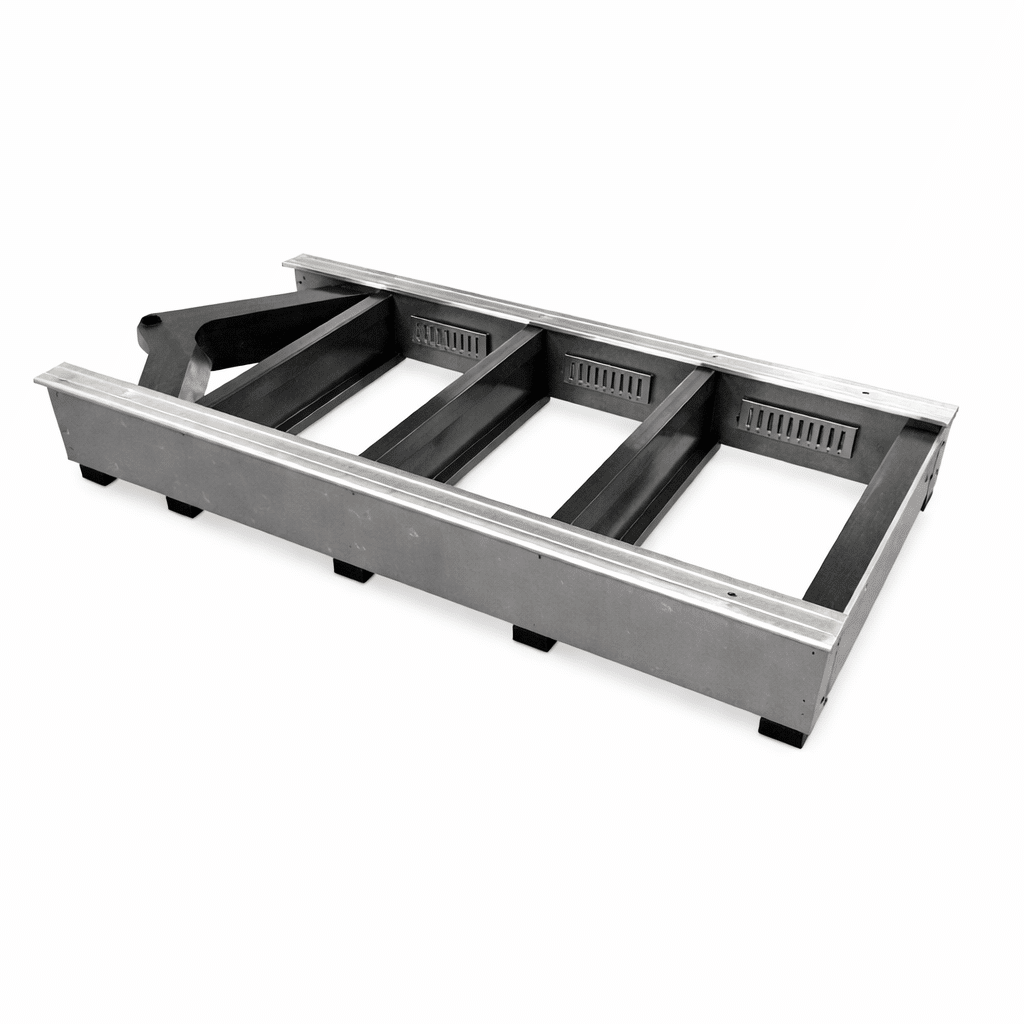

Heavy-duty bed structure ensuring stability and precision for laser cutting.

Bed

Powerfulenergy output increases cutting speed：The laser is used to generate high-energy and high-density laser beams to meltor vaporize metals. Lasers of different powers and types can meet the processingrequirements of materials and thicknesses

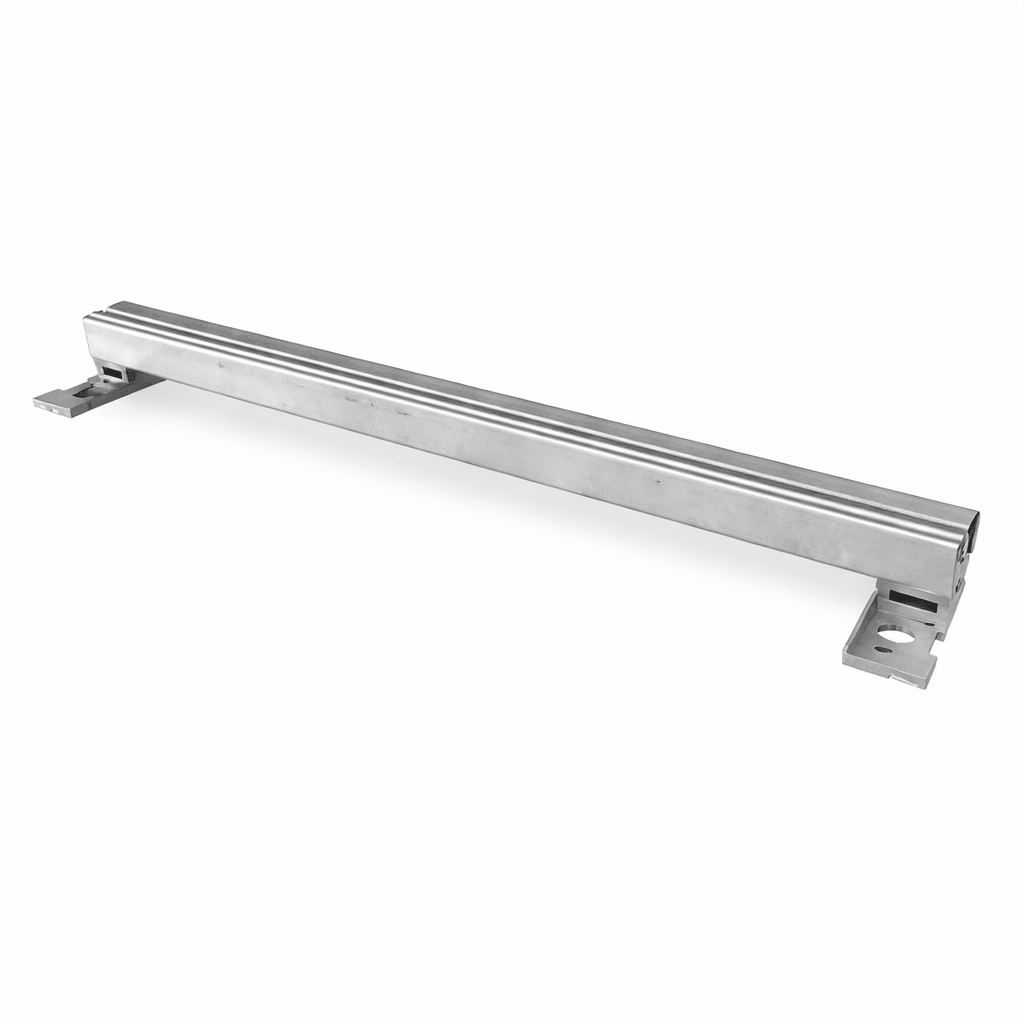

Crossbeam made of aviation aluminum for high-speed precision cutting.

Crossbeam

Special aviation aluminum enables high-speed motion without vibration：The crossbeam is made of aviation aluminum, featuring light weight and high strength.Combined with the drive system and guide rails, iteffectively reduces the running inertiaand ensures smooth operation athigh speeds.

Performance Features

Optimized for high-efficiency cutting, featuring dual exchange tables, superior cutting speed, and precise, reliable performance in continuous industrial operations.

Cost Efficiency

Lower investment with simplified structure,suitable for entry-level users with stablecutting performance.

Easy Operation

User-friendly interface and quick setup,reducing training time and improving work efficiency.

Compact Design

Small footprint with open table, ideal for limited space workshops.

Stable&Precise

Monolithic bed ensures long-term stabilityand cutting precision.

Open Single Table Sheet Laser Cutting Machine

he Open Single Table Sheet Laser Cutting Machine is designed for high-efficiency, high-precision cutting. It is ideal for industries that require quick and accurate metal processing. The open table design facilitates easy material handling, while its advanced technology ensures superior cutting quality and performance, making it a reliable solution for various applications such as:

Get a Free Quote

Metal Fabrication Workshop

High-precision bending solutions for job shops handling various metal materials, thicknesses, and custom fabrication requirements.

Automotive Manufacturing

Precision bending for automotive body panels, chassis components, brackets, and structural parts, ensuring consistency and high production efficiency.

Aerospace Industry

High-precision bending of aerospace components for aircraft structures, requiring exceptional accuracy, repeatability, and strict quality control.

Elevator & Lift Manufacturing

Reliable bending solutions for elevator cabins, doors, frames, and guide components, meeting strict safety and dimensional standards.

Shipbuilding Industry

Heavy-duty bending for ship hull panels, decks, bulkheads, and structural steel parts, designed for large-scale and high-load applications.

Construction Industry

Precision forming of steel structures, beams, panels, and architectural metal components for commercial and industrial construction projects.

FAQ

Have questions about our Open Single Table Sheet Laser Cutting Machine? Find answers to common queries and get more information on its features and specifications.

We offer a variety of laser cutting machines, including CO2 laser cutting machines, fiber laser cutting machines, and laser engravers, all suitable for different materials and applications.

We provide professional installation and training services to ensure the proper setup and operation of your machine. Our team offers on-site support and detailed manuals.

The maximum cutting thickness varies by machine model and material type. For our fiber laser cutting machines, it can cut up to 30mm mild steel. Please contact us for more specific details.

Yes, our laser cutting machines are highly customizable to meet your production needs. We offer options for different power levels, table sizes, and software configurations.

Our laser cutting machines include several safety features such as enclosed protective covers, emergency stop buttons, and safety interlocks to protect operators and ensure safe operation.

Our laser cutting machines can process a wide range of materials including mild steel, stainless steel, aluminum, brass, and copper, among others.

The typical lead time for delivery is 4 to 6 weeks after order confirmation, depending on the machine specifications and customization requirements.

Yes, we provide full after-sales support including machine maintenance, software updates, troubleshooting, and spare parts supply. Our support team is available via phone, email, and online.

Yes, we can provide references and testimonials from our satisfied customers. Please contact us directly, and we will share relevant case studies and reviews.

We offer a standard 12-month warranty for our laser cutting machines from the installation date. The warranty covers manufacturing defects and ensures the quality and longevity of the machine.
