Precision Sheet Metal Cutting with Stable Hydraulic Control

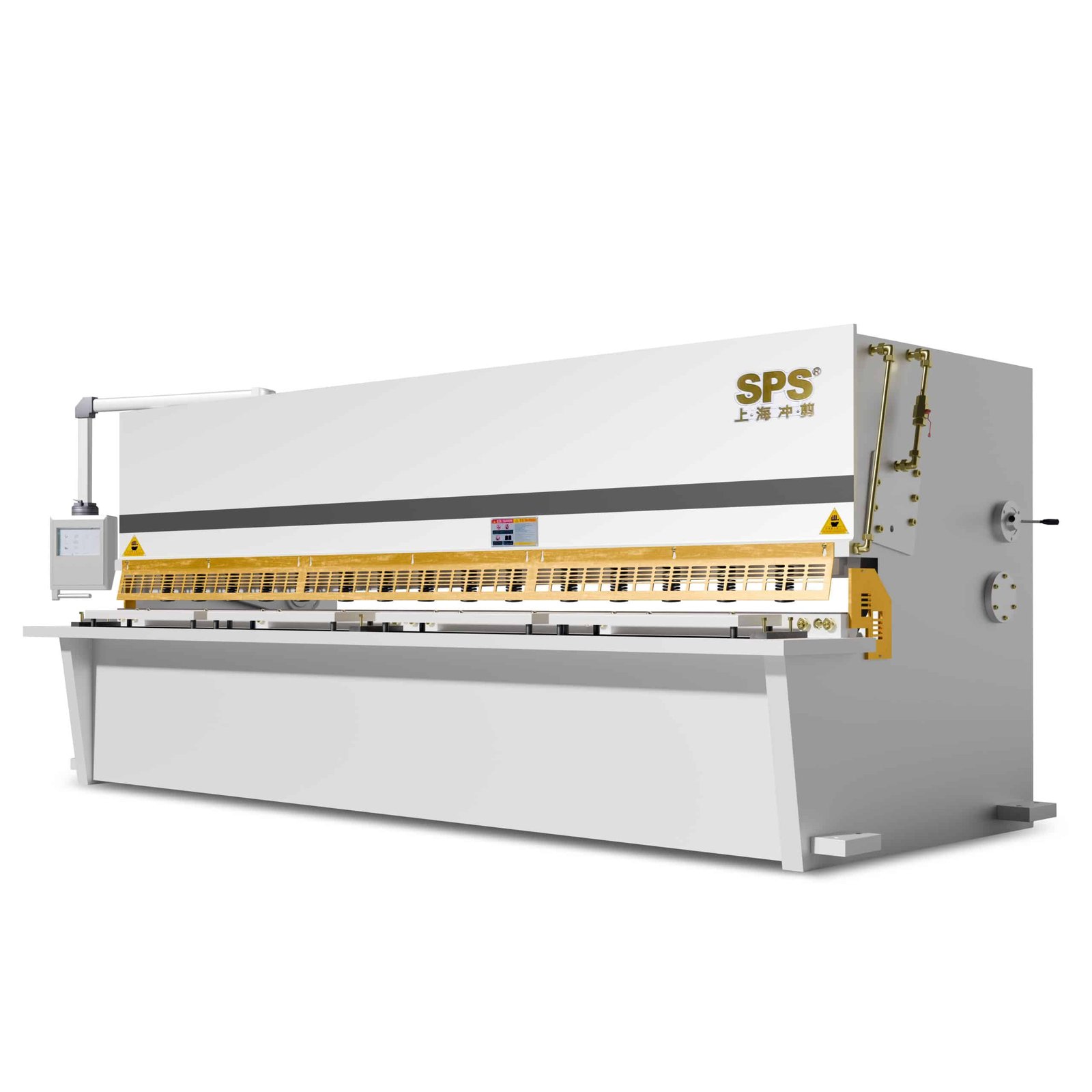

CNC Hydraulic Pendulum Shearing Machine
Our CNC hydraulic pendulum shearing machine is designed for high-precision sheet metal cutting applications. Equipped with an advanced CNC control system, stable hydraulic assembly, and precision rear stopper mechanism, it ensures consistent cutting performance and long-term operational reliability.
// KEY ENGINEERING ADVANTAGES
Key Engineering Advantages
High Structural Stability
Heavy-duty welded frame construction ensures vibration reduction and long-term structural integrity during continuous cutting operations.
Precision Rear Gauge System
Ball screw and linear guide rail system provide accurate positioning and repeatable cutting performance.
Advanced Hydraulic Control
Premium hydraulic valve groups guarantee stable pressure output, low noise operation, and extended service life.
Intelligent CNC System
Supports programmable cutting, automatic rear gauge adjustment, and real-time shear counting.
// OUR PRODUCT RANGE
CNC Hydraulic Shearing Solutions for Sheet Metal Fabrication
A CNC-controlled hydraulic pendulum shearing solution for precise, stable, and efficient sheet metal cutting.
// CNC CONTROL + HYDRAULIC POWER
CNC Hydraulic Pendulum Shearing Machine
Our CNC hydraulic pendulum shearing machine is designed for accurate and efficient sheet metal cutting. With stable hydraulic power, programmable CNC rear gauge control, and a rigid welded frame, it delivers consistent cutting performance for metal fabrication workshops and industrial production lines. It’s an ideal solution when you need clean cuts, repeatable accuracy, and reliable daily operation.
- Programmable CNC rear gauge for repeatable cutting accuracy
- Stable hydraulic valve system for smooth, low-noise operation
- Multi-step positioning and shear counting for higher efficiency
- Reinforced frame structure for long-term stability and durability
Why Choose Our Shearing Machines
More than a machine supplier—we support your production efficiency.
Applications of Hydraulic Shearing Machines
Used across multiple industries:
Global Success Stories
Our hydraulic shearing machines are trusted by metal fabrication companies worldwide, helping improve cutting efficiency, precision, and long-term production stability.
BUYING GUIDE SECTION
Selecting the right hydraulic shearing machine depends on material strength, plate thickness, and working width. Understanding these key factors ensures stable cutting performance and long blade service life.
Understanding Model Numbers
Each model number reflects the maximum cutting thickness and cutting length.
This allows you to quickly match machine capacity with your production needs.
Choose: PrimeShear 0425 or LiteShear 0325
Choose: PrimeShear 0640
Material Thickness Considerations
Rated capacity is based on mild steel (≤450 MPa).
Harder materials require reduced cutting thickness to maintain clean edges and stable operation.
Capacity Adjustment by Material Type
If rated for 6mm mild steel, effective thickness varies:
• Stainless Steel – lower
• Aluminum – higher
• High-Strength Steel – lower
Always select a model with additional capacity margin for stable long-term use.
Hydraulic Shearing Machine Model & Capacity Comparison
Compare cutting thickness, cutting length, motor power, and key specifications to select the most suitable model for your production needs.
| Type | Cutting Thickness | Cutting Length | Cutting Angle | Throat Depth | Back Gauge Range | Strokes | Main Motor Power | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|---|---|
| mm | mm | ° | mm | mm | cycle/min | kW | mm | |
| 4 × 2500 | 4 | 2500 | 1.5 | 100 | 20–600 | 18 | 5.5 | 3200×1600×1600 |
| 4 × 3200 | 4 | 3200 | 1.5 | 100 | 20–600 | 19 | 5.5 | 3900×1600×1600 |
| 4 × 4000 | 4 | 4000 | 1.5 | 100 | 20–600 | 14 | 7.5 | 4700×1600×1600 |
| 4 × 5000 | 4 | 5000 | 1.5 | 100 | 20–600 | 12 | 11 | 5800×1750×1850 |
| 4 × 6000 | 4 | 6000 | 1.5 | 100 | 20–600 | 8 | 11 | 6800×1750×1850 |
| 6 × 2500 | 6 | 2500 | 1.5 | 100 | 20–600 | 17 | 7.5 | 3200×1650×1800 |
| 6 × 3200 | 6 | 3200 | 1.5 | 100 | 20–600 | 15 | 7.5 | 3900×1650×1800 |
| 6 × 4000 | 6 | 4000 | 1.5 | 100 | 20–600 | 12 | 7.5 | 4700×1650×1800 |
| 6 × 5000 | 6 | 5000 | 1.5 | 100 | 20–600 | 10 | 11 | 5800×1800×1950 |
| 6 × 6000 | 6 | 6000 | 2 | 100 | 20–600 | 8 | 11 | 6800×1800×1950 |
| 8 × 2500 | 8 | 2500 | 2 | 100 | 20–600 | 16 | 7.5 | 3200×1700×1850 |
| 8 × 3200 | 8 | 3200 | 2 | 100 | 20–600 | 14 | 7.5 | 3900×1700×1850 |
| 8 × 4000 | 8 | 4000 | 2 | 100 | 20–600 | 11 | 7.5 | 4700×1700×1850 |
| 8 × 5000 | 8 | 5000 | 2 | 100 | 20–600 | 10 | 11 | 5800×1900×2100 |
| 8 × 6000 | 8 | 6000 | 2 | 120 | 20–600 | 8 | 11 | 6800×1900×2200 |
| 10 × 2500 | 10 | 2500 | 2 | 120 | 20–600 | 12 | 11 | 3200×1850×1900 |
| 10 × 3200 | 10 | 3200 | 2 | 120 | 20–600 | 10 | 11 | 3900×1850×1900 |
| 10 × 4000 | 10 | 4000 | 2 | 120 | 20–600 | 8 | 15 | 4700×1850×1900 |
| 10 × 5000 | 10 | 5000 | 2 | 120 | 20–600 | 7 | 15 | 5800×2000×2150 |
| 10 × 6000 | 10 | 6000 | 2 | 120 | 20–600 | 6 | 18.5 | 6800×2000×2500 |
| 12 × 2500 | 12 | 2500 | 2.5 | 120 | 20–600 | 11 | 15 | 3200×2050×2150 |
| 12 × 3200 | 12 | 3200 | 2.5 | 120 | 20–600 | 10 | 18.5 | 3900×2050×2150 |
| 12 × 4000 | 12 | 4000 | 2.5 | 120 | 20–600 | 8 | 18.5 | 4700×2050×2150 |
| 12 × 5000 | 12 | 5000 | 2.5 | 120 | 20–600 | 7 | 22 | 5800×2200×2200 |
| 12 × 6000 | 12 | 6000 | 2.5 | 120 | 20–600 | 6 | 22 | 6800×2400×2600 |
| 16 × 2500 | 16 | 2500 | 2.5 | 120 | 20–600 | 10 | 18.5 | 3200×2150×2250 |
| 16 × 3200 | 16 | 3200 | 2.5 | 120 | 20–600 | 9 | 18.5 | 3900×2150×2250 |
| 16 × 4000 | 16 | 4000 | 2.5 | 120 | 20–600 | 8 | 22 | 4700×2150×2250 |
| 16 × 5000 | 16 | 5000 | 2.5 | 120 | 20–600 | 6 | 30 | 5800×2500×2500 |
| 16 × 6000 | 16 | 6000 | 2.5 | 120 | 20–600 | 6 | 37 | 6800×2500×2700 |
| 20 × 2500 | 20 | 2500 | 3 | 120 | 20–600 | 8 | 22 | 3200×2250×2350 |
| 20 × 3200 | 20 | 3200 | 3 | 120 | 20–600 | 7 | 22 | 3900×2250×2350 |
| 20 × 4000 | 20 | 4000 | 3 | 120 | 20–600 | 6 | 30 | 4700×2350×2350 |
| 20 × 5000 | 20 | 5000 | 3 | 120 | 20–600 | 5 | 37 | 5800×2600×2700 |
| 20 × 6000 | 20 | 6000 | 3 | 120 | 20–600 | 4 | 37 | 6800×2600×2900 |
| 25 × 2500 | 25 | 2500 | 3 | 120 | 20–600 | 6 | 37 | 3200×2300×2500 |
| 25 × 3200 | 25 | 3200 | 3 | 120 | 20–600 | 5 | 37 | 3900×2300×2500 |
| 25 × 4000 | 25 | 4000 | 3.5 | 120 | 20–600 | 5 | 37 | 4700×2500×2600 |
| 25 × 5000 | 25 | 5000 | 3.5 | 120 | 20–600 | 4 | 45 | 5800×2700×2800 |
| 25 × 6000 | 25 | 6000 | 3.5 | 120 | 20–600 | 4 | 45 | 6800×2700×2900 |
FAQ
Clear answers to common questions about CNC hydraulic pendulum shearing machines and metal sheet cutting applications.
What cutting capacity should I choose?
The required model depends on maximum sheet thickness and sheet width.
For example, a 6×3200 model can cut up to 6mm mild steel with 3200mm cutting length.
We recommend selecting a machine with 20–30% extra capacity for long-term stability.
What materials can this machine cut?
The CNC Hydraulic Pendulum Shearing Machine is suitable for:
Mild steel
Stainless steel
Aluminum
Galvanized sheet
Copper and brass
Actual cutting thickness varies depending on tensile strength.
What is the difference between pendulum type and guillotine type?
Pendulum (Swing Beam) shears use arc motion with fixed rake angle, ideal for medium thickness sheets with cost efficiency.
Guillotine shears use linear vertical motion and adjustable rake angle, suitable for thicker plates and higher precision applications.
What CNC controller options are available?
We support:
Estun controller
Delem controller
E21 / E200 / DAC series options
Optional features include programmable cutting sequences and automatic blade gap adjustment.
What is the backgauge accuracy?
Standard positioning accuracy: ±0.1 mm
Repeatability: High stability under continuous production.
Ball screw backgauge systems are available for higher precision requirements.
What is the delivery time?
Standard models: 2–4 weeks
Customized configurations: 4–6 weeks
We maintain stable production capacity for export markets including Southeast Asia, Russia, and Korea.
What warranty do you provide?
We provide:
2-year warranty on main structure
1-year warranty on hydraulic and electrical components
Lifetime technical support
Consumables such as blades are not covered under warranty.
Can the machine be customized?
Yes. We support customization for:
Cutting length (2500mm – 6000mm)
Motor power
Backgauge travel range
Automatic lubrication system
Safety light curtain
OEM and export configurations are available.
Is remote technical support available?
Yes. We provide:
24/7 remote support
Video troubleshooting
English technical documentation
Online training assistance
On-site service can be arranged if required.
How often should blades be replaced?
Blade life depends on material and usage frequency.
Under normal conditions, blades can handle 50,000–100,000 cuts before sharpening.
Each blade has multiple cutting edges, allowing rotation before replacement.
