Electro-Hydraulic CNC Press Brake for Precision Sheet Metal Bending
Designed for industrial fabrication with stable synchronization, accurate bending, and reliable long-term operation.
// WHY CHOOSE US
Key Engineering Advantages of Our Press Brake Machines
Most of our machines are configured based on customer requirements.
Why Engineers Choose Our Press Brake Solutions
Press brakes are available with electro-hydraulic synchronization, torsion bar systems, and dual-machine linkage structures to match different accuracy and load requirements.
Flexible CNC Control & Axis Options
Machines support various CNC control systems and axis configurations, allowing setup based on bending complexity, automation level, and operator requirements.
Project-Oriented Customization Capability
Working length, tonnage, stroke, daylight, backgauge structure, and tooling interfaces can be configured according to specific production and engineering needs.
// OUR PRODUCT RANGE
PRESS BRAKE SOLUTIONS
A complete range of press brake machines designed for different bending accuracy, materials, and production requirements.
Our press brake solutions are categorized by control system, synchronization method, and application capacity to help you select the right machine efficiently.

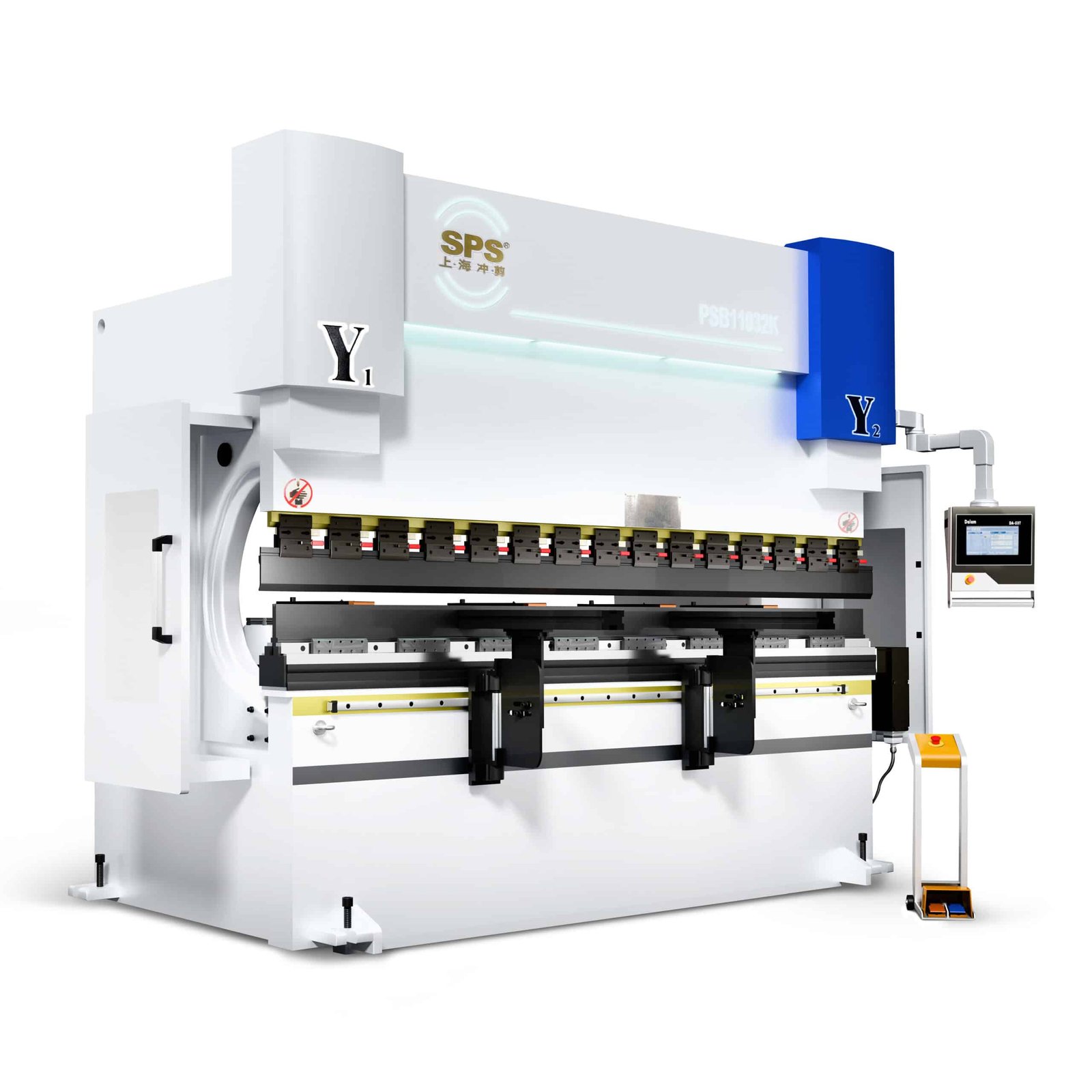

// PSB Series
Main Servo Electro-Hydraulic Synchronous Press Brake
High-precision electro-hydraulic synchronous press brakes designed for stable, accurate, and repeatable bending in demanding sheet metal fabrication.
- Closed-loop electro-hydraulic servo control ensures high bending accuracy and excellent synchronization performance.
- Integrated hydraulic system reduces oil leakage, improves machine stability, and delivers clean, reliable long-term operation.
- Advanced crowning compensation system automatically corrects slider deformation to guarantee consistent bending quality.

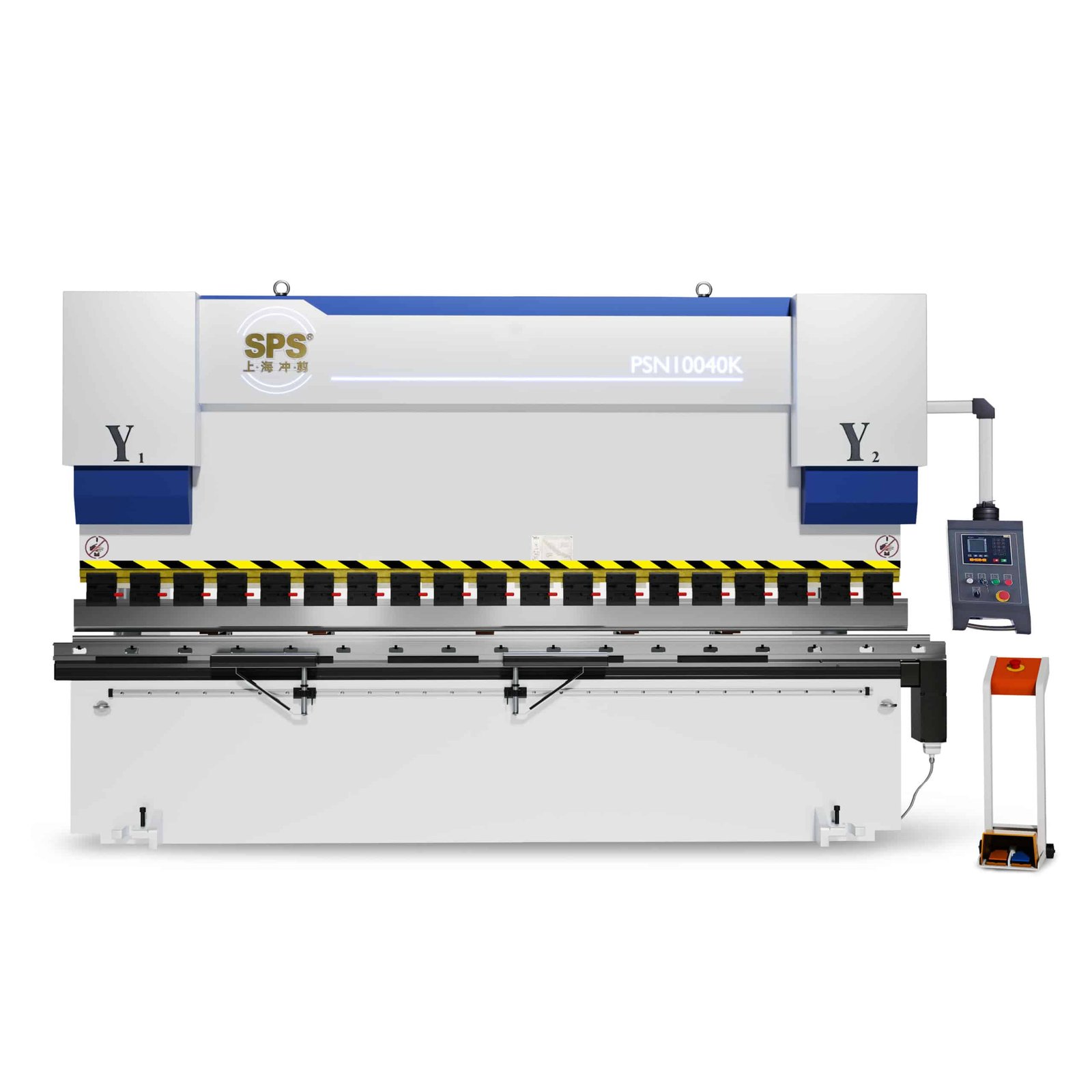

// PSN Series
Torsion Bar Synchronous CNC Press Brake
Reliable torsion bar synchronous press brakes designed for stable, efficient, and user-friendly sheet metal bending operations.
- Fully welded steel frame with vibration aging treatment ensures high rigidity, strength, and long-term stability.
- Dual hydraulic cylinders with torsion bar synchronization provide smooth operation and consistent bending accuracy.
- User-friendly backgauge system with motorized adjustment, digital display, and optional 10-inch touchscreen for easy operation.

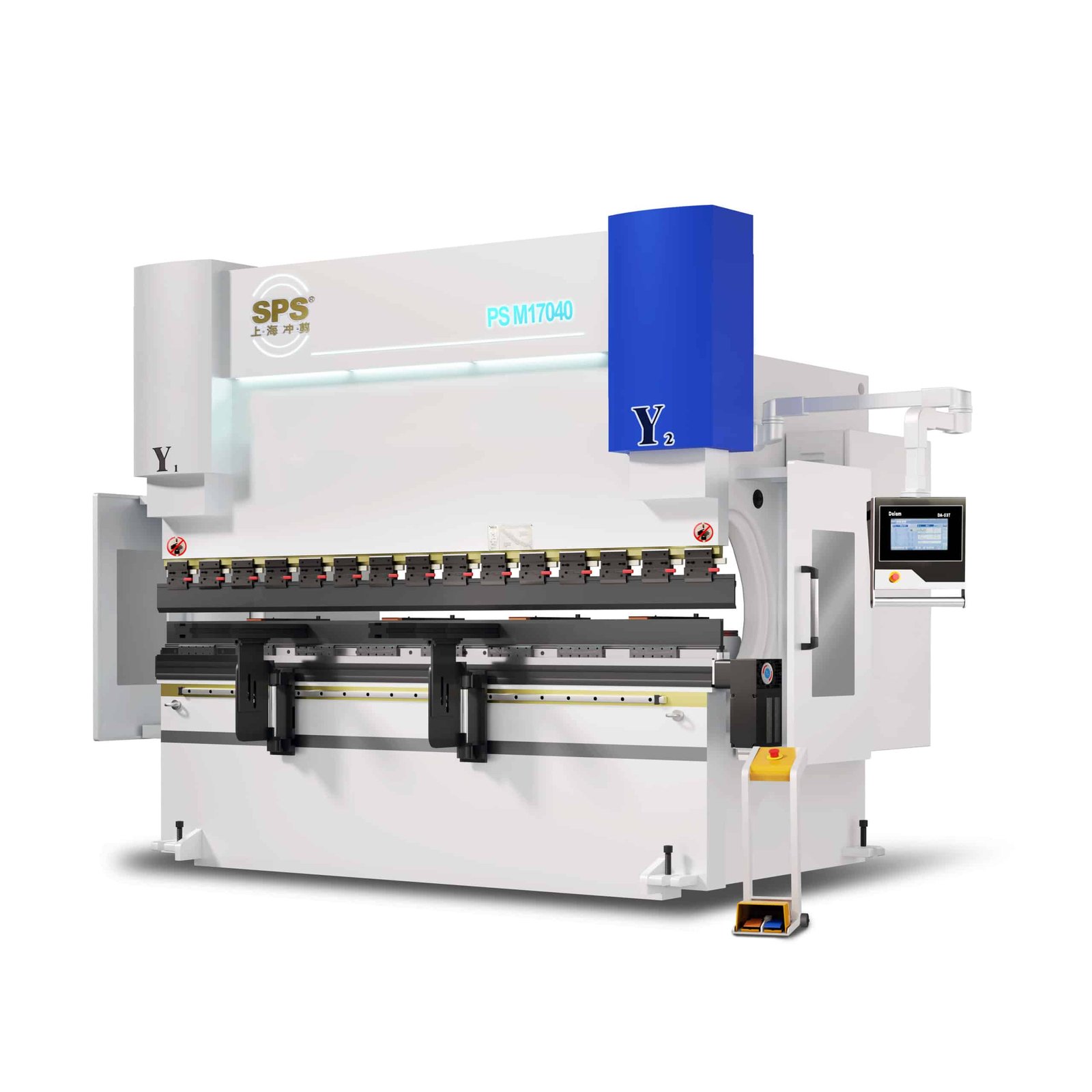

// PSM Series
High-End Dual Servo Pump-Controlled CNC Press Brake
Advanced pump-controlled CNC press brakes engineered for high efficiency, precision, and energy-saving performance in demanding production environments.
- Advanced pump-controlled CNC press brakes engineered for high efficiency, precision, and energy-saving performance in demanding production environments.
- Dual servo pump-controlled technology delivers faster response, higher efficiency, improved accuracy, and significant energy savings.
- High-rigidity machine structure minimizes frame and ram deformation, ensuring superior bending precision.
- Extended stroke and increased daylight opening allow easy handling of large and heavy workpieces.
- High-performance backgauge system provides faster positioning speed and higher positioning accuracy.

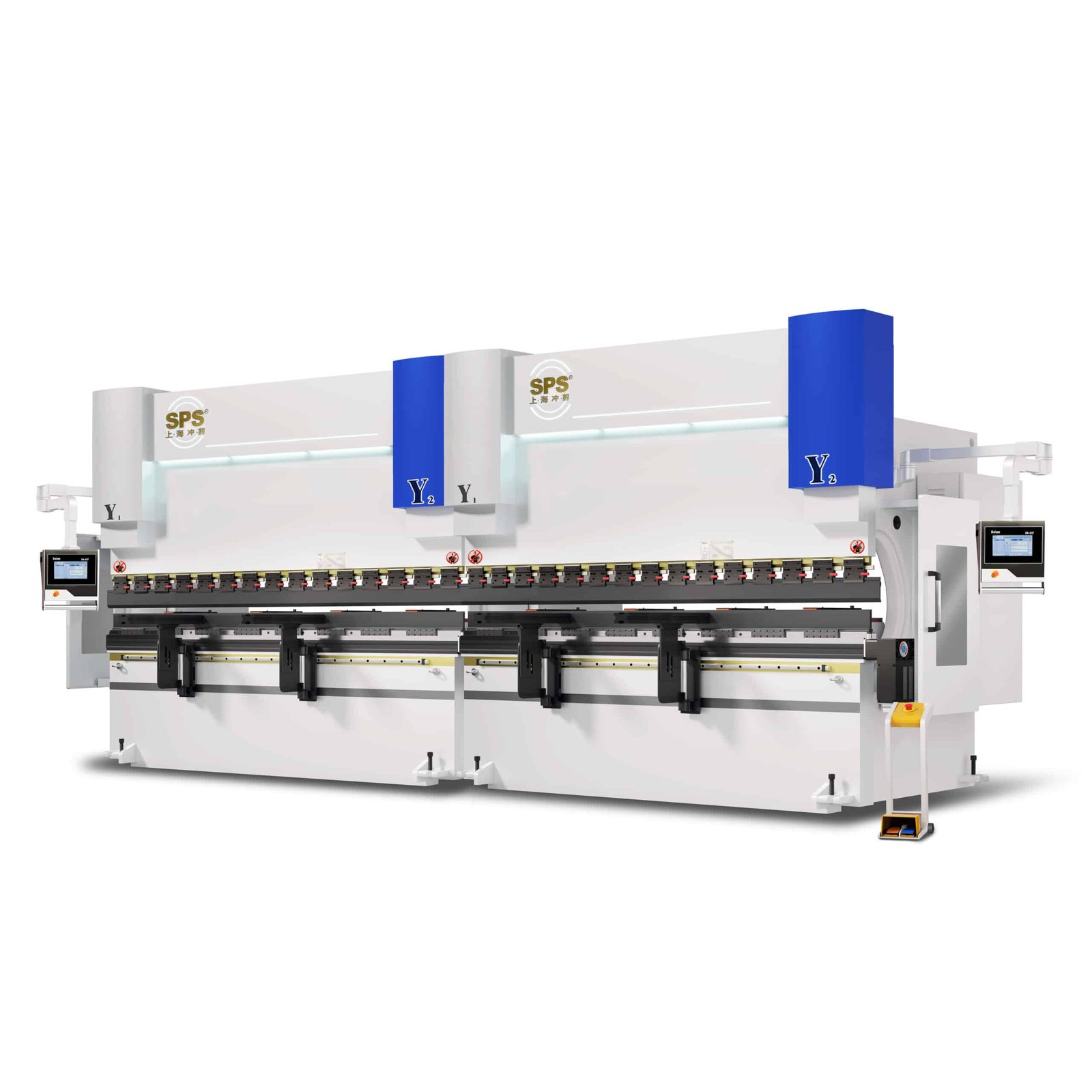

// PSD Series
Dual-Machine Linkage CNC Press Brake
High-performance dual-machine linkage press brakes designed for bending extra-long and large-scale workpieces with exceptional accuracy and stability.
- Two CNC press brakes linked through an advanced control system, enabling synchronized bending of extra-long and large workpieces.
- High-speed, high-precision, and high-rigidity CNC bending performance for demanding industrial applications.
- Electro-hydraulic servo synchronization technology ensures precise and consistent control of ram positioning across both machines.
- Mechanical deflection compensation and throat deformation compensation mechanisms on the workbench guarantee uniform bending accuracy along the entire length.
// PSA Series
Electro-Hydraulic Synchronous CNC Press Brake
Electro-hydraulic synchronous press brakes featuring high speed, high precision, and high rigidity for stable and accurate sheet metal bending.
- Streamlined machine design delivers high-speed, high-precision, and high-rigidity CNC bending performance.
- Electro-hydraulic synchronization technology enables more accurate control of ram positioning and bending accuracy.
- Mechanical deflection compensation and throat deformation compensation mechanisms on the worktable ensure consistent bending precision.
- Backgauge system driven by digital AC servo motors with precision ball screw transmission and linear guide rail guidance for stable and accurate positioning.

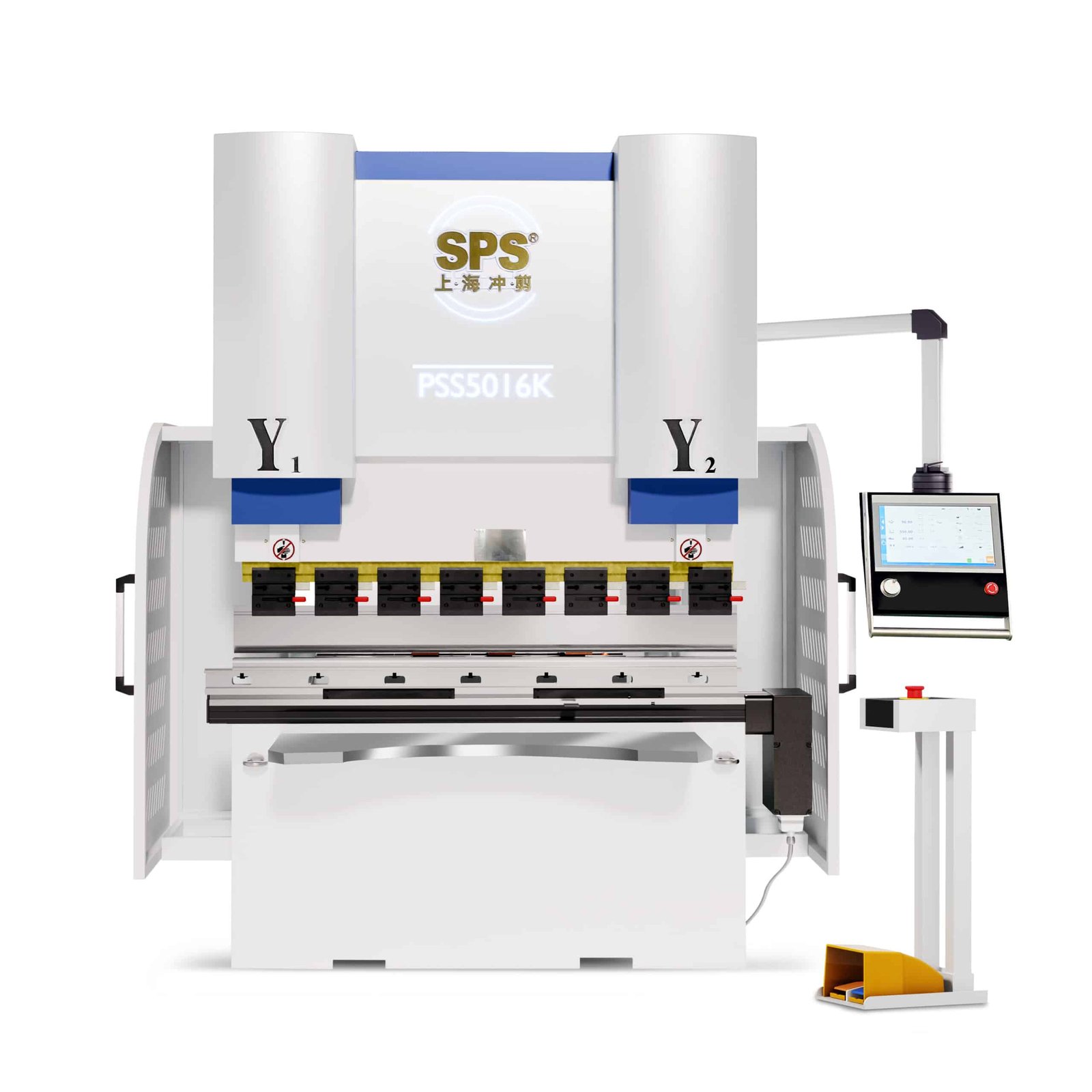

// PSS Series
Full Electric CNC Press Brake
Full electric CNC press brake designed for precision bending with high energy efficiency, stable positioning accuracy, and reduced maintenance requirements in sheet metal fabrication.
- Fully electric mechanical servo drive system eliminates hydraulic oil, ensuring clean operation and high transmission efficiency.
- Machine frame welded and stress-relieved, processed in a single setup by gantry machining center for high rigidity and accuracy.
- Heavy-duty precision ball screw drive provides long service life, stable repeatability, and accurate ram control.
- Advanced CNC control systems available, supporting 4–8 axis configurations for flexible bending operations.
- Energy-saving design reduces operating costs while maintaining consistent bending precision in continuous production.
Press Brake Applications
Our press brake machines are widely used in precision sheet metal fabrication across multiple industries.
Press Brake Selection Guide for Engineering Projects
Selecting the right press brake depends on material type, thickness, bending length, and production volume.
This page provides reference specifications and configuration options to support engineering and procurement decisions.
For project-based requirements, technical drawings are recommended for final confirmation.
How to Choose the Right Press Brake
The following table provides a general reference for press brake selection. Actual capacity depends on material type, thickness, tooling, and bending method.
| Type | 63T/2500 | 80T/3200 | 110T/3200 | 110T/4000 | 130T/3200 | 130T/4000 |
|---|---|---|---|---|---|---|
| Nominal Force | 630 kN | 800 kN | 1100 kN | 1100 kN | 1300 kN | 1300 kN |
| Bending Length | 2500 mm | 3200 mm | 3200 mm | 4000 mm | 3200 mm | 4000 mm |
| Distance Between Columns | 2100 mm | 2700 mm | 2700 mm | 3500 mm | 2700 mm | 3500 mm |
| Throat Depth | 350 mm | 350 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Slider Stroke | 150 mm | 150 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Table Height | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Main Motor Power | 5.5 kW | 7.5 kW | 7.5 kW | 7.5 kW | 11 kW | 11 kW |
| Backgauge X-axis Travel | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Backgauge Speed | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s |
| Overall Dimensions (L×W×H) | 2800×2200×1200 mm | 3500×2350×1350 mm | 3500×2750×1400 mm | 4300×2560×1450 mm | 3500×2560×1450 mm | 4300×2560×1450 mm |
| Type | 170T/4000 | 220T/3200 | 220T/4000 | 250T/3200 | 250T/4000 | 320T/4000 |
|---|---|---|---|---|---|---|
| Nominal Force | 1700 kN | 2200 kN | 2200 kN | 2500 kN | 2500 kN | 3200 kN |
| Bending Length | 4000 mm | 3200 mm | 4000 mm | 3200 mm | 4000 mm | 4000 mm |
| Distance Between Columns | 3500 mm | 2700 mm | 3500 mm | 2700 mm | 3500 mm | 3500 mm |
| Throat Depth | 400 mm | 360 mm | 400 mm | 360 mm | 400 mm | 400 mm |
| Slider Stroke | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm | 250 mm |
| Table Height | 840 mm | 900 mm | 900 mm | 840 mm | 900 mm | 950 mm |
| Main Motor Power | 15 kW | 15 kW | 18.5 kW | 15 kW | 22 kW | 22 kW |
| Backgauge X-axis Travel | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Backgauge Speed | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s |
| Overall Dimensions (L×W×H) | 4300×2600×1450 mm | 3300×2600×1500 mm | 4300×2600×1500 mm | 3300×2650×1600 mm | 4300×2650×1600 mm | 4300×2700×2000 mm |
| Type | 400T/4000 | 500T/5000 | 500T/6000 | 500T/7000 | 600T/5000 | 600T/6000 | 600T/7000 |
|---|---|---|---|---|---|---|---|
| Nominal Force | 4000 kN | 5000 kN | 5000 kN | 5000 kN | 6000 kN | 6000 kN | 6000 kN |
| Bending Length | 4000 mm | 5000 mm | 6000 mm | 7000 mm | 5000 mm | 6000 mm | 7000 mm |
| Distance Between Columns | 3500 mm | 3900 mm | 4900 mm | 5900 mm | 3900 mm | 4900 mm | 5900 mm |
| Throat Depth | 400 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Slider Stroke | 250 mm | 250 mm | 250 mm | 250 mm | 300 mm | 300 mm | 300 mm |
| Table Height | 1000 mm | 1000 mm | 800 mm | 800 mm | 1000 mm | 1000 mm | 1000 mm |
| Main Motor Power | 30 kW | 37 kW | 37 kW | 37 kW | 45 kW | 45 kW | 45 kW |
| Backgauge X-axis Travel | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Backgauge Speed | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s | 200 mm/s |
| Overall Dimensions (L×W×H) | 4300×2700×2000 mm | 5400×2800×2200 mm | 6500×2800×2200 mm | 7500×2800×2200 mm | 5500×3000×2200 mm | 6500×3000×2500 mm | 7500×3000×2500 mm |
FAQ
All specifications are provided by our engineering team based on actual machine configurations and production experience.
What types of press brakes do you offer?
We offer a complete range of CNC press brakes for sheet metal bending, including electro-hydraulic synchronous press brakes, torsion bar press brakes, tandem (dual-machine) press brakes, and customized special-purpose press brakes.
Our main series include PSB, PSM, PSN, PSD, PSA, and PSS, covering light-duty to heavy-duty industrial applications.
How do I choose the right press brake tonnage?
Press brake tonnage depends on material type, material thickness, bending length, and die opening.
As a general reference:
Tonnage ≈ (650 × S² × L) / V
Where:
S = material thickness (mm)
L = bending length (m)
V = die opening (mm)
Our engineers can calculate the exact tonnage and recommend the most suitable model based on your actual production needs.
What is the difference between electro-hydraulic and torsion bar press brakes?
Electro-hydraulic synchronous press brakes use servo valves and closed-loop control systems to achieve higher accuracy, better repeatability, and stable synchronization, making them suitable for precision and heavy-duty bending.
Torsion bar press brakes use mechanical synchronization and are more cost-effective, ideal for standard bending operations with moderate accuracy requirements.
What level of bending accuracy can your press brakes achieve?
Our CNC press brakes can achieve:
Slider positioning accuracy: ±0.01 mm
Bending angle accuracy: ±0.1° (depending on configuration and tooling)
Accuracy may vary based on material properties, tooling, and operator settings.
What materials can be bent on your press brakes?
Our press brakes are suitable for bending a wide range of materials, including:
Mild steel
Stainless steel
Aluminum
Copper
Brass
Galvanized steel
Maximum thickness depends on machine tonnage and bending length.
What CNC control systems do you support?
We support internationally recognized CNC control systems, including:
DELEM (Netherlands)
ESA (Italy)
CYBELEC (Switzerland)
For entry-level models, simplified controllers are also available.
Is after-sales technical support available?
Yes. We offer long-term technical support, including:
Remote troubleshooting
Spare parts supply
Operation guidance
Maintenance advice
Our goal is to ensure stable and reliable machine operation throughout its service life.
切换标题How We Configure Your Press Brake
Choose a machine type
Tell us your requirements
We optimize configuration
Production & delivery
Can press brakes be customized?
Yes. We provide extensive customization options, including:
Stroke length
Daylight (opening height)
Throat depth
Backgauge axes configuration
Tool clamping systems
Safety protection options
Customization ensures the machine fits your specific production requirements.
Do you offer tandem (dual-machine) press brake solutions?
es. Our PSD series tandem press brakes connect two machines through a synchronized control system, allowing bending of extra-long and heavy workpieces with stable accuracy a
What industries commonly use your press brakes?
Our press brakes are widely used in:
Sheet metal fabrication
Steel structures
Automotive parts
Elevator manufacturing
Electrical enclosures
Construction and infrastructure projects
What is the typical delivery time?
Standard models are usually ready within 2–4 weeks.
Customized machines may require additional lead time depending on configuration.
Do you provide installation and training support?
es. We provide on-site installation, commissioning, and operator training, as well as remote technical support when require
Yes. We provide on-site installation, commissioning, and operator training, as well as remote technical support when required.
We provide a 2-year warranty covering manufacturing defects.
During the warranty period, we offer technical support and replacement of defective parts according to warranty terms.
What Warranty Do You Offer On Your Press Brakes?
We provide a comprehensive warranty covering manufacturing defects, hydraulic systems, electrical components, and CNC controllers.
During the warranty period, defective parts will be repaired or replaced according to warranty terms. Long-term spare parts supply and technical support are guaranteed.
Get Your Custom Press Brake Solution
Technical configuration support for project-based bending applications
• Material type, thickness, and bending length evaluation
• Tonnage calculation and structural configuration review
• Optional tooling, backgauge, and safety system selection
Technical drawings and production parameters are recommended for accurate configuration.
