Enclosed Double Table Sheet Laser Cutting Machine

The Open Double Table Sheet Laser Cutting Machine is designed for high-speed and high-precision metal cutting. Featuring dual exchange table design, this machine allows continuous operation by seamlessly switching between two workpieces, minimizing downtime and maximizing productivity. It is ideal for industries such as automotive manufacturing, aerospace, metal fabrication, and construction.

Get a Quote
Facebook Instagram Linkedin Youtube

Enclosed Double Table Sheet Laser Cutting Machine Technical Parameters

Model BLSD 3015 BLSD 4015 BLSD 6015 BLSD 4020 BLSD 6020 BLSD 6322 BLSD 6325 BLSD 8325 BLSD 13025
Working Area (mm) 3000×1500 4000×1500 6000×1500 4000×2000 6000×2000 6300×2200 6300×2500 8300×2500 13000×2500
Table Load Bearing (Kg) 2000 2500 3500 3500 5000 5500 12500 16500 26000
Overall Dimensions (cm) Main Frame: 517x290x219 Tail Frame: 344x226x83 Main Frame: 630x290x219 Tail Frame: 438x226x83 Main Frame: 637x290x219 Tail Frame: 438x226x83 Main Frame: 828x354x219 Tail Frame: 637x262x83 Main Frame: 828x354x219 Tail Frame: 637x262x83 Main Frame: 885x364x232 Tail Frame: 666x282x83 Main Frame: 885x387x243 Tail Frame: 666x310x98 Main Frame: 866x387x243 Tail Frame: 666x310x98 Main Frame: 1366x387x243 Tail Frame: 766x310x98
Max. Acceleration 1.5G 1.5G 1.5G 1.5G 1.5G 1.5G 1.2G 1.2G 1.2G
Max. Linkage Speed (m/min) 120 120 120 120 120 120 120 120 120
Max. Positioning Accuracy (m/min) 100 100 100 100 100 100 100 100 100
X Axis Travel (mm) 1520 1520 1520 2020 2020 2220 2520 2520 2520
Y Axis Travel (mm) 3050 4050 6050 4050 6050 6350 6350 8350 13050
Z Axis Travel (mm) 140/300 140/300 140/300 140/300 140/300 150/350 150/350 150/350 150/350
X, Y Axis Positioning Accuracy (mm/m) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
X, Y Axis Repositioning Accuracy (mm/m) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02



Enclosed Double Table Sheet Laser Cutting Machine Product Configuration

 System Model BLSD Models
3015  4015 6015 4020 6020 6322  6325 8325 13025
Mechanical System Bed Steel Plate Welding
Beam Aviation Aluminum Beam
Z-axis Slide Module
Exchange Table Parallel Exchange Table，Lifting Exchange Table
CoverFully Cover Fully Cover
Motion System Servo Motor and Drive BOCU, CHINA
Gear Reducer TECHMECH,CHINA
Guide Rail GAUSSCN, GERMANY @ HIWIN, TAIWAN CHINA
Rack GAUSSCN, GERMANY @ APEX, TAIWAN CHINA
Bellow Cover
Cable Carrier
Optical System Laser Source Maxphotonics, CHINA @ RAYCUS, CHINA
Laser Cutting Head BOCHU, CHINA
Control System Bus Controller BOCHU, CHINA
Operating Software BOCHU, CHINA
Nesting Software BOCHU, CHINA
Electrical System Electrical SCHNEIDER, FRANCE
Voltage Stabilizer
Industrial PC
Display 24 inches
Remote Controller BOCHU, CHINA
Cooling System Water Chiller HANLI, CHINA @ S&A, CHINA @ TONGFEI, CHINA
Cabinet Heat Exchanger TONGFEI, CHINA
Gas Supply System Pneumatic Valve Block SMC, JAPAN (3000W-6000W); RAYCEE, CHINA (12000W-30000W); AVENTICS, GERMANY (40000W-60000W)
Pressure Alarm
Dust Extraction System Zoned Dust Removal Structure
Centrifugal Fan
Safety System Camera 2个 Two Pieces ,2个 TWo Pieces, 4个 Four Pieces ,2个 Two Pieces ,4个 Four Pieces ,4个 Four Pieces ,4个 Four Pieces ,4个 Four Pieces,4个 FourPieces


Lubrication System

 Lubricating Device Automatic
Oil Collection Device
Wear Parts Wear Parts Kit Protective lens, Nozzle, Ceramic ring
Optional Air Compressor

Related products

Machine Configuration Overview

Dual Workstations Exchange Table for Laser Cutting Machine

Exchange Table

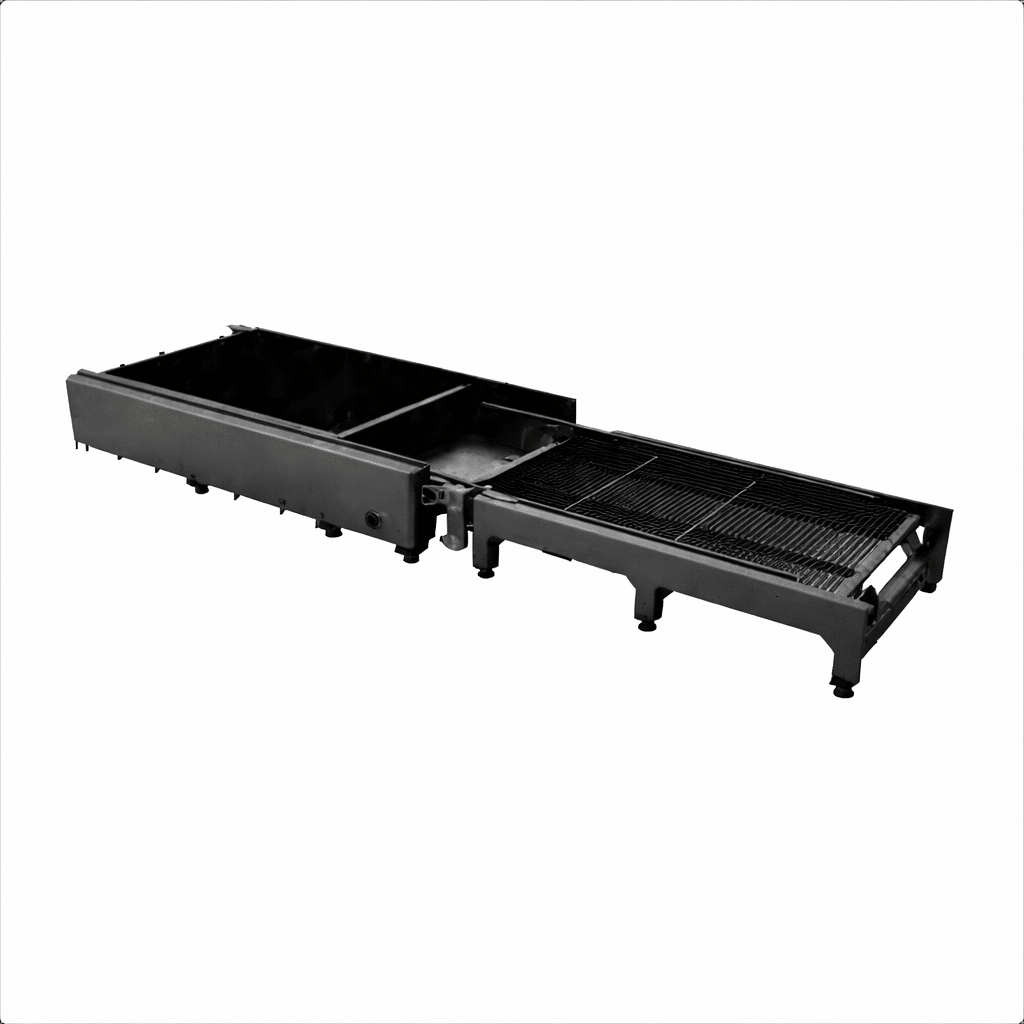

Dual Workstations Switch for Enhanced Work Efficiency： The exchange mechanism adopts a chain synchronous drive system, enabling cutting and loading/unloading to be carried out simultaneously, significantly reducing downtime and enhancing production efficiency.

Zoned Dust Removal Structure for Laser Cutting

Zoned Dust Removal Structure

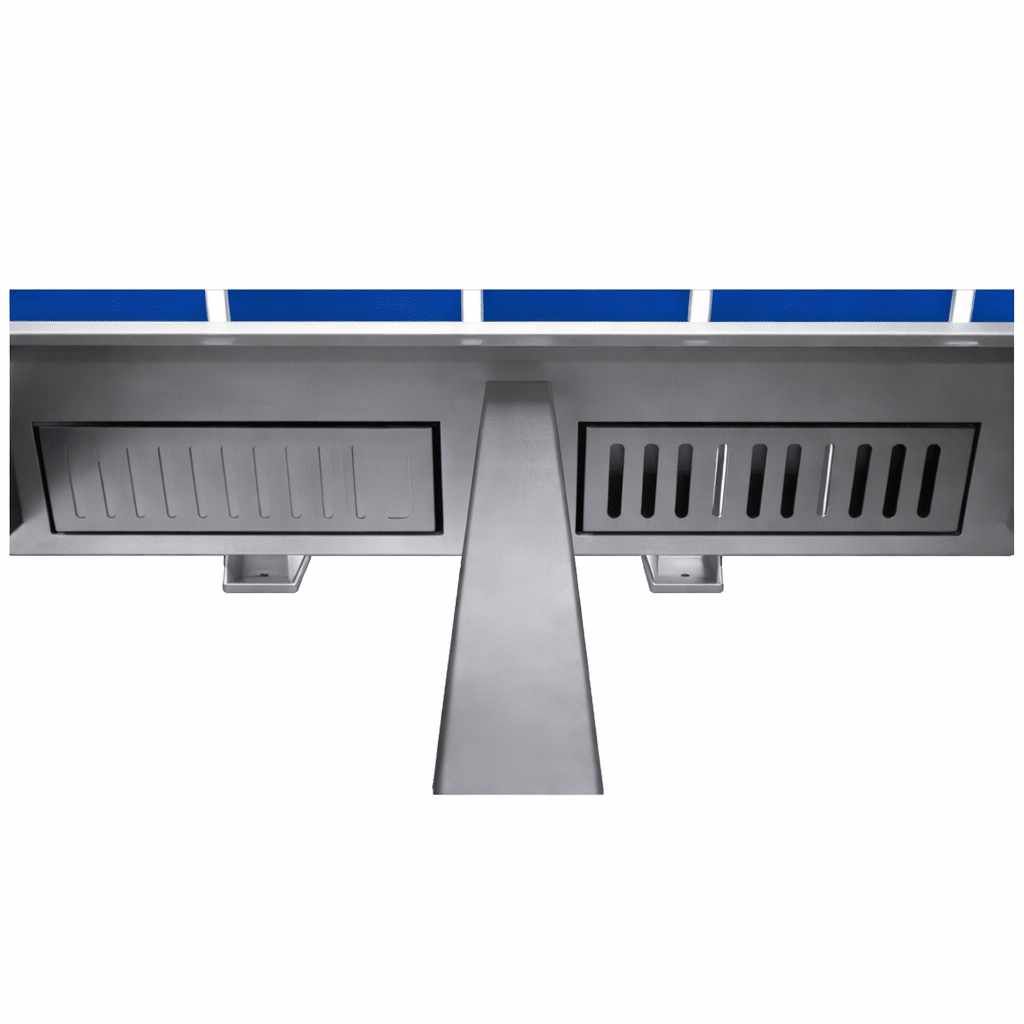

Zoned Dust Extraction Keeps Work Area Clean： The cutting area is divided into multiple zones, and the dust removal system of the corresponding zone is precisely activated based on the position of the cutting head. This design effectively mitigates dust in the work environment.

Servo Motor and Drive for Precision Control

Servo Motor and Drive

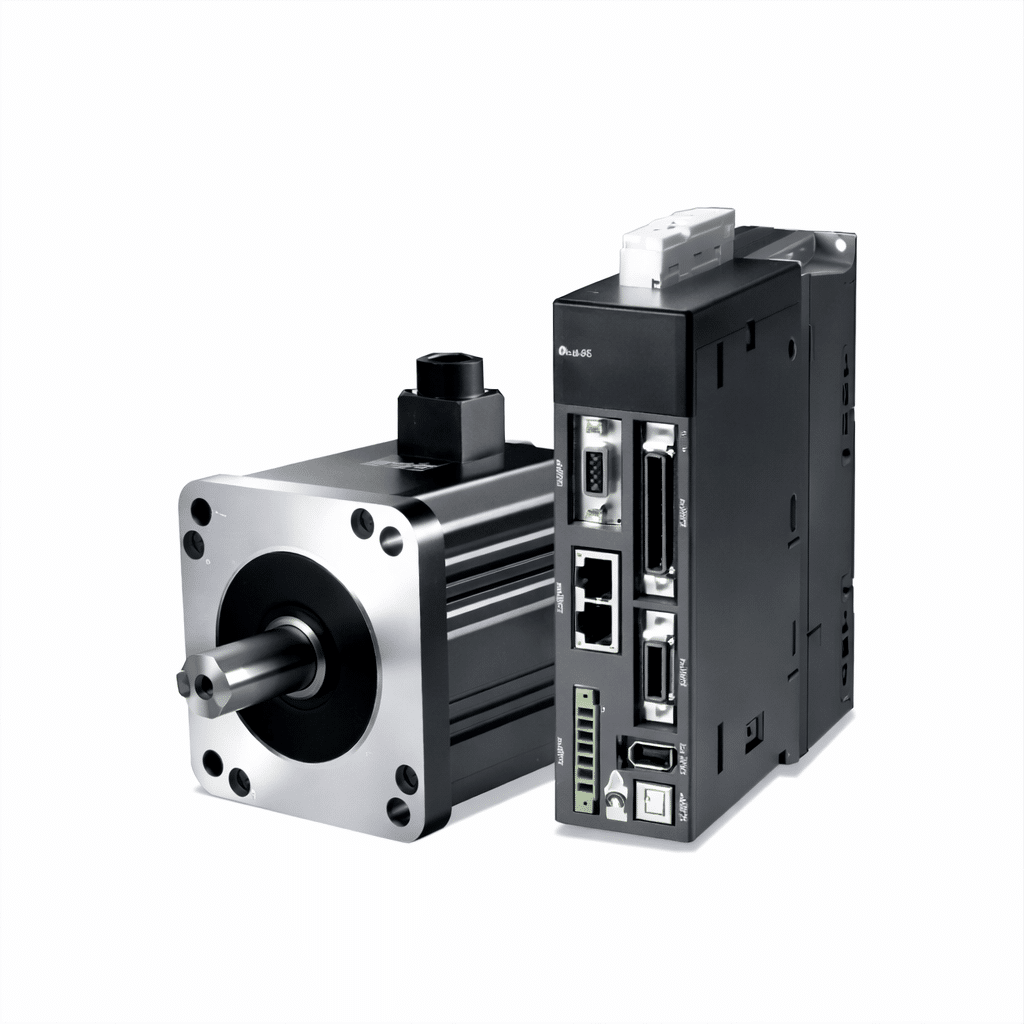

Fine Control with Fast, Responsive Performance： The servo system is used to precisely control the position, speed, and acceleration of the motion axis, achieving stable and reliable dynamic response and repeatability accuracy.

Gear Reducer for High Torque and Smooth Operation

Gear Reducer

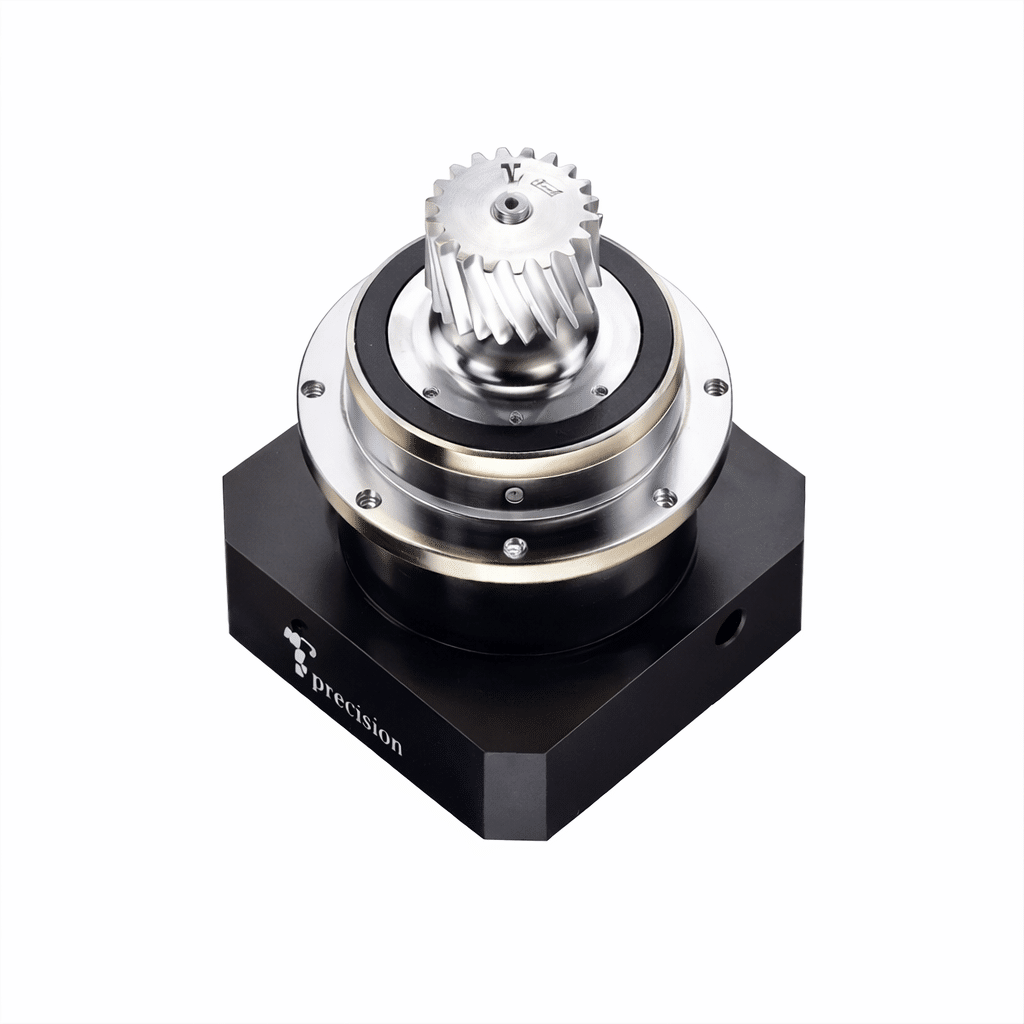

High Torque Output for Smooth and Reliable Operation： The gear reducer is used to reduce the high-speed rotation of the servo motor into low-speed, high-torque output suitable for cutting, ensuring smooth and precise transmission.

Performance Features

Designed for precision laser cutting, combining dual workstations, zoned dust removal structure, servo motor and drive, and high-torque gear reducer for enhanced performance and efficiency.

Cost Efficiency

Lower investment with simplified structure,suitable for entry-level users with stable cutting performance.

Easy Operation

User-friendly interface and quick setup,reducing training time and improving workefficiency.

Compact Design

Small footprint with open table, ideal for limited space workshops.

Stable&Precise

Monolithic bed ensures long-term stability and cutting precision.

Laser Cutting Machine Applications

Our Enclosed Double Table Sheet Laser Cutting Machine is designed for high-efficiency sheet metal cutting. Widely used across multiple industries, it combines dual workstations, zoned dust removal, and precise servo control to offer exceptional performance. With its superior precision, flexibility, and reliability, it is the ideal solution for a wide range of sectors, including:

Get a Free Quote

Metal Fabrication Workshop

High-precision bending solutions for job shops handling various metal materials, thicknesses, and custom fabrication requirements.

Automotive Manufacturing

Precision bending for automotive body panels, chassis components, brackets, and structural parts, ensuring consistency and high production efficiency.

Aerospace Industry

High-precision bending of aerospace components for aircraft structures, requiring exceptional accuracy, repeatability, and strict quality control.

Elevator & Lift Manufacturing

Reliable bending solutions for elevator cabins, doors, frames, and guide components, meeting strict safety and dimensional standards.

Shipbuilding Industry

Heavy-duty bending for ship hull panels, decks, bulkheads, and structural steel parts, designed for large-scale and high-load applications.

Construction Industry

Precision forming of steel structures, beams, panels, and architectural metal components for commercial and industrial construction projects.

FAQ

Here are some common questions and answers to help you understand our Enclosed Double Table Sheet Laser Cutting Machine better. If you need more information, feel free to reach out.

The Enclosed Double Table Sheet Laser Cutting Machine is a high-performance cutting machine designed for precision sheet metal fabrication. It features dual workstations, which enable simultaneous cutting and loading/unloading, improving productivity and reducing downtime.

The dual workstation system allows for cutting and loading/unloading operations to occur at the same time. This greatly reduces downtime and improves overall production efficiency.

This laser cutting machine is ideal for industries such as metal fabrication, automotive manufacturing, aerospace, electronics, and general manufacturing, where precision sheet metal cutting is required.

The Enclosed Double Table Sheet Laser Cutting Machine is capable of cutting a wide range of materials, including mild steel, stainless steel, aluminum, and other non-ferrous metals.

Key features include dual workstations, a zoned dust removal structure, a servo motor and drive system for precise control, and a high-torque gear reducer for smooth operation. It also offers quick setup and easy operation for enhanced productivity.

The servo motor and drive system precisely control the position, speed, and acceleration of the machine, achieving reliable dynamic response and repeatability. This ensures high precision and consistent cutting performance.

The enclosed design helps minimize dust and debris exposure, providing a cleaner and safer working environment. It also reduces noise levels, making it more suitable for sensitive work environments.

Routine maintenance involves checking the machine for wear, cleaning the dust extraction system, and lubricating moving parts. The machine is designed for easy maintenance to ensure long-term reliability and performance.

The machine features a user-friendly interface for easy setup. Parameters can be adjusted based on the material type and thickness, ensuring optimal cutting performance for each material.

The Enclosed Double Table Sheet Laser Cutting Machine comes with a standard warranty, typically covering parts and labor for a specific period (e.g., 12 months). Extended warranty options are also available.
