The CNC Vertical Grooving Machine is designed for high-precision V-grooving of sheet metal. It combines servo-controlled movement, precision linear guides, hydraulic clamping, and multiple alloy cutting tools to provide stable, accurate, and efficient grooving performance.
With a maximum sheet length of 4000 mm, maximum sheet width of 1600 mm, and repeat positioning accuracy of ±0.02 mm, this vertical grooving machine is suitable for a wide range of precision sheet metal fabrication applications.
Key Features of CNC Vertical Grooving Machine

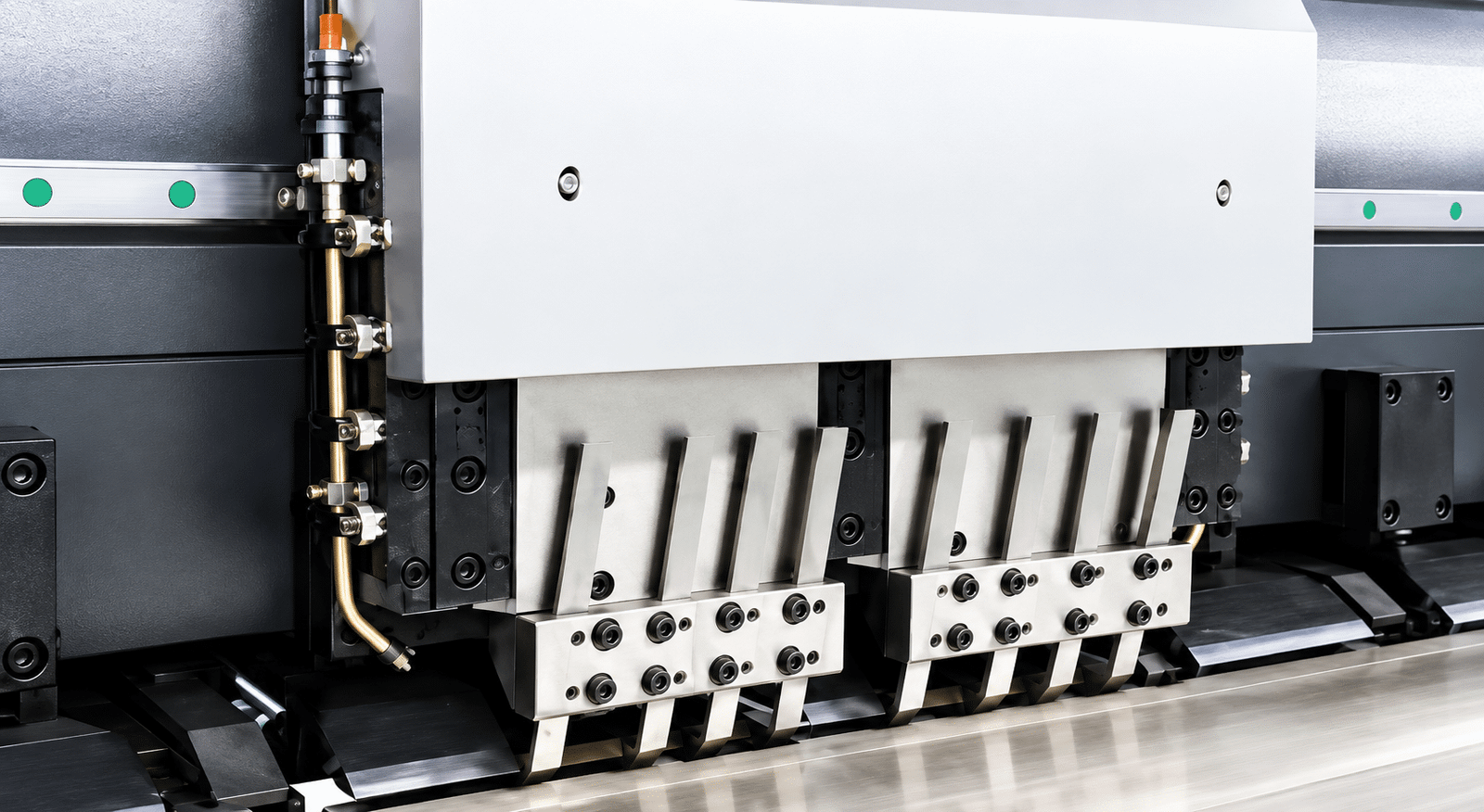

Multiple Alloy Cutting Tools
Multiple alloy cutting tools help improve grooving efficiency and cutting accuracy. Single-head and double-head configurations are available to meet different processing requirements.

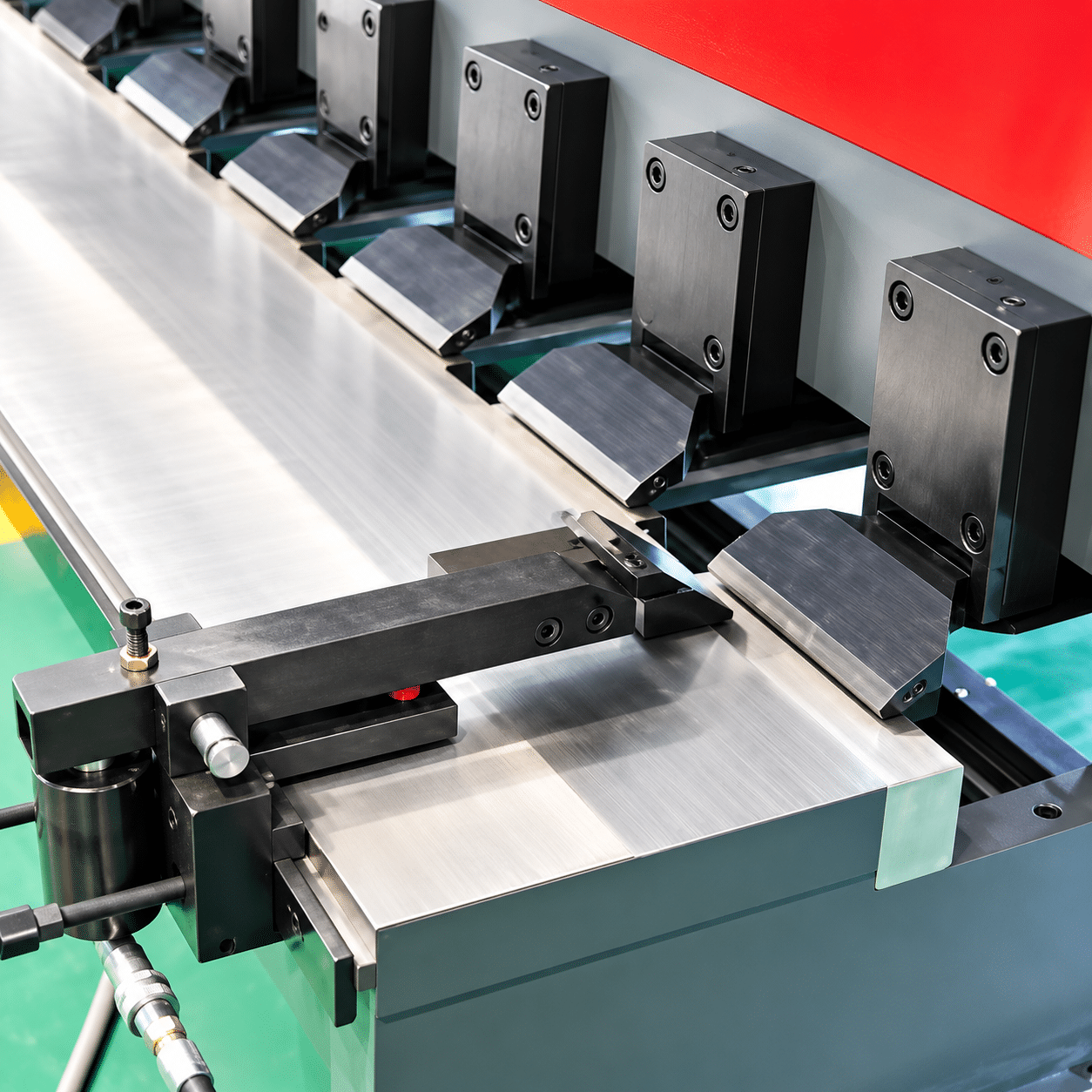

Hydraulic Sheet Pressing System
The independent hydraulic pressing system provides stable and reliable pressure to securely hold sheets during the grooving process. It can accommodate different sheet sizes while maintaining stable machining performance.

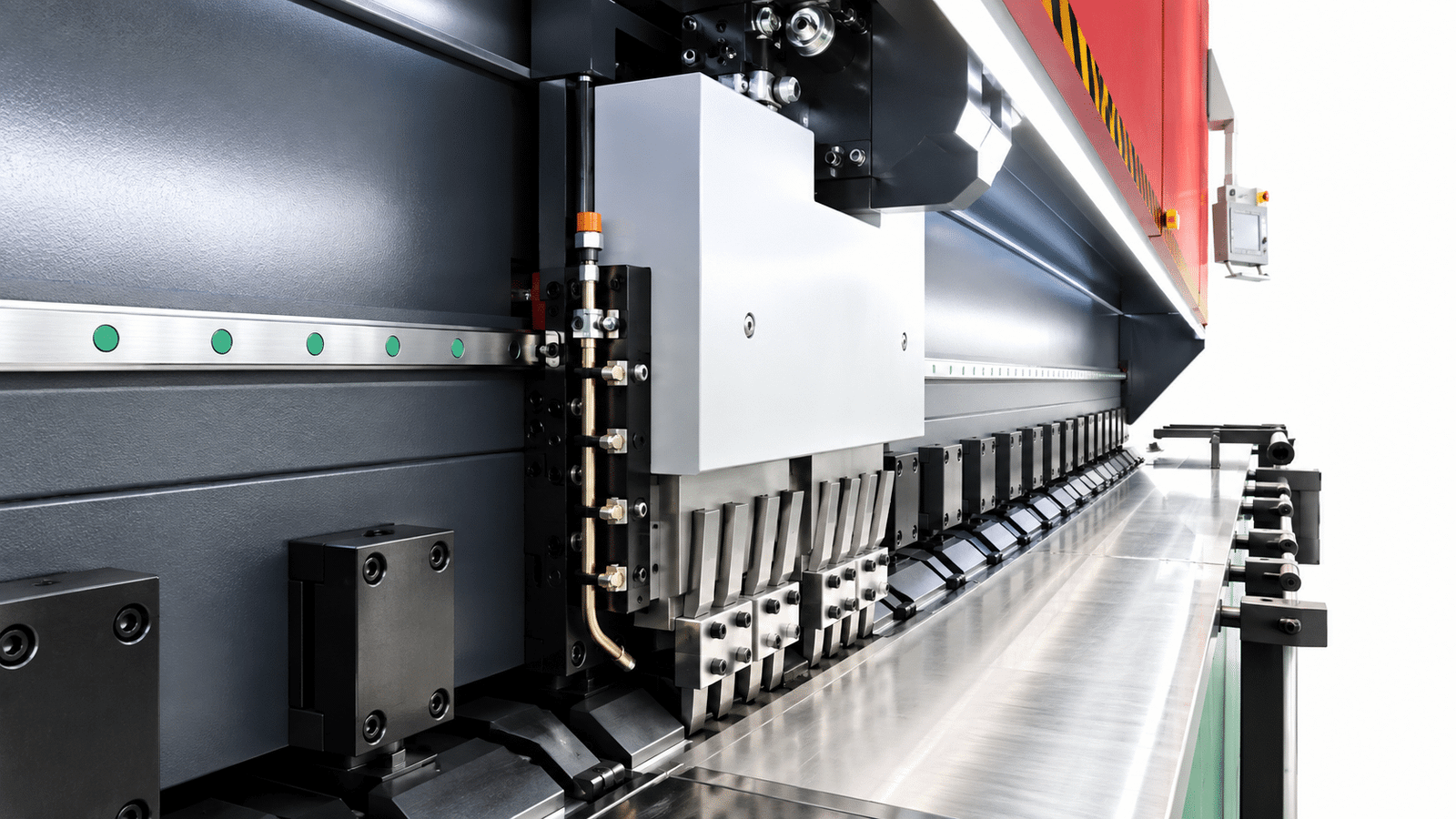

Servo Drive & Precision Linear Guide
The servo motor precisely controls the high-speed movement of the planer head. Precision linear guides and rack transmission provide smooth movement and accurate positioning during high-speed grooving.

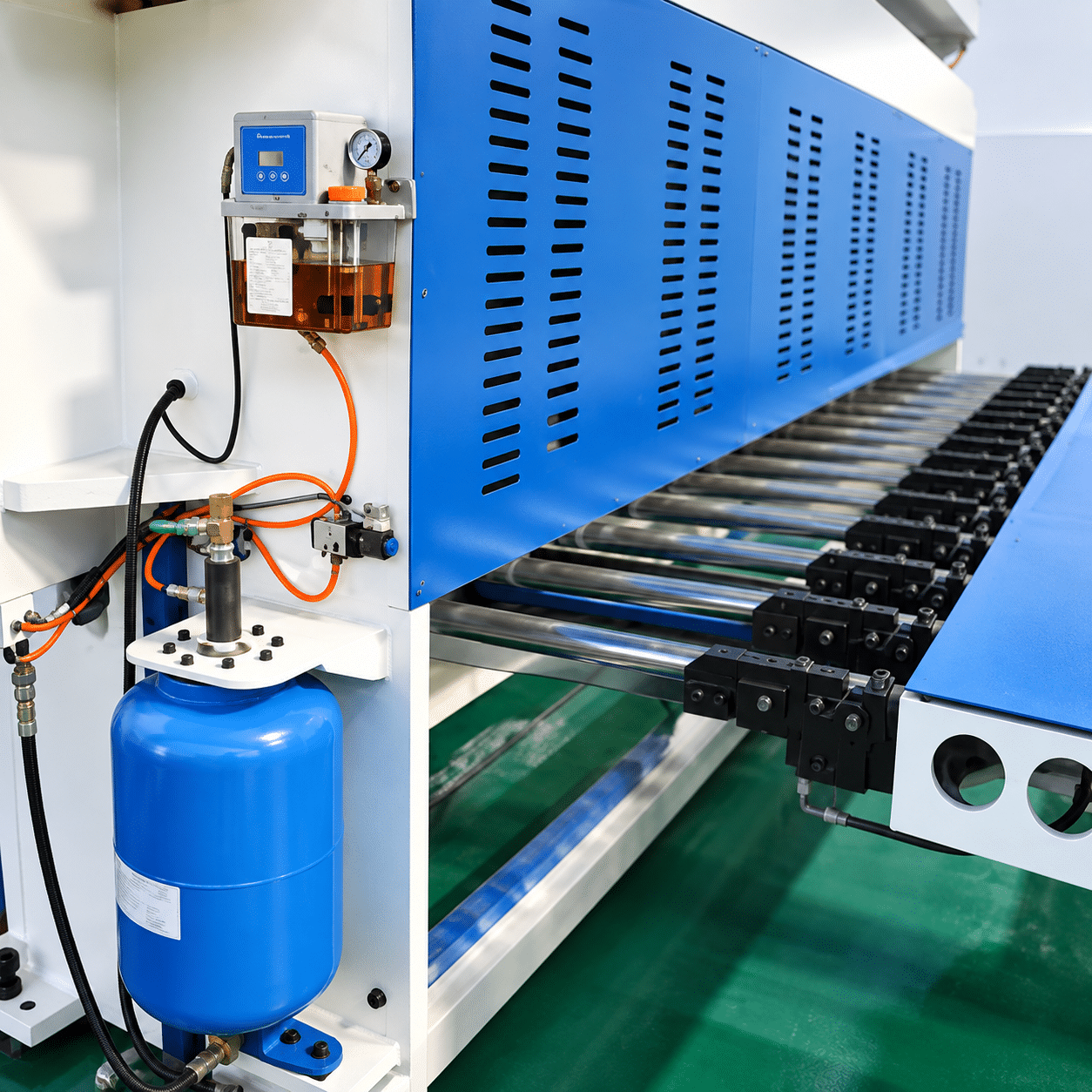

Stable Hydraulic Clamping
The hydraulic clamping system provides stable clamping pressure and accurate sheet feeding, helping maintain consistent positioning and machining performance throughout the grooving process.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sheet Thickness | 0.5–4 mm |
| Sheet Width | 20–1600 mm |
| Sheet Length | 600–4000 mm |
| X / Y Axis Travel | 4000 × 1600 mm |
| Maximum Sheet Weight | 120 kg |
| Maximum Tool Travel | 10 mm |
| X-axis Maximum Moving Speed | 100 m/min |
| Y-axis Maximum Moving Speed | 20 m/min |
| Z1 / Z2 Axis Maximum Moving Speed | 9 m/min |
| X-axis Servo Motor Power | 5.5 kW |
| Y-axis Servo Motor Power | 1.5 kW |
| Z1 / Z2 Servo Motor Power | 2 × 0.4 kW |
| Number of Controlled Servo Axes | 4 |
| Y / Z Repeat Positioning Accuracy | ±0.02 mm |
| Minimum Grooving Width (Alloy Tool) | 14 mm |
| Hydraulic Pressure | 8 MPa |
| Machine Dimensions | 6000 × 3000 × 2000 mm |
| X-axis Drive System | Servo-driven Rack and Pinion Transmission |
High-Precision Sheet Metal Grooving
The CNC Vertical Grooving Machine is designed for sheet metal applications that require accurate positioning, stable cutting, and efficient V-grooving.
Its multi-axis servo control system coordinates cutting and positioning movements. Combined with precision linear guides and rack transmission, the machine provides smooth and accurate operation during the grooving process.
The machine supports sheets up to 4000 × 1600 mm, making it suitable for both standard sheet metal fabrication and large-format metal processing.
Suitable Materials
The CNC Vertical Grooving Machine can be used for grooving various sheet metal materials, including:
- Stainless steel sheets
- Aluminum sheets
- Mild steel sheets
- Other metal sheets suitable for V-grooving
Applications
The CNC Vertical Grooving Machine is suitable for a wide range of precision sheet metal fabrication applications.
Architectural Metalwork
Suitable for V-grooving decorative metal panels and other architectural sheet metal components where precise bending and clean finished edges are required.
Elevator Manufacturing
Suitable for processing elevator doors, cabin panels, and other sheet metal components used in elevator manufacturing.
Metal Door Manufacturing
The machine can be used for precision grooving before bending and forming metal door panels and related components.
Cabinet & Enclosure Manufacturing
Suitable for electrical cabinets, metal enclosures, and other fabricated sheet metal products requiring accurate bending.
General Sheet Metal Fabrication
Suitable for sheet metal workshops and manufacturers requiring efficient and precise V-grooving for different fabrication projects.
Why Choose Our CNC Vertical Grooving Machine?
High-Speed Movement
The X-axis maximum moving speed reaches 100 m/min, supporting efficient sheet metal processing and improving production efficiency.
±0.02 mm Repeat Positioning Accuracy
The servo-controlled system provides Y and Z axis repeat positioning accuracy of up to ±0.02 mm, helping maintain consistent grooving results.
Large Processing Capacity
The machine supports sheet sizes up to 4000 × 1600 mm, providing flexibility for different sheet metal fabrication requirements.
Stable Hydraulic Clamping
The hydraulic clamping system securely holds the workpiece during machining, helping maintain stable positioning throughout the grooving process.
Servo-Controlled Movement
Servo motors combined with precision linear guides and rack transmission provide accurate, smooth, and stable machine movement.
Flexible Cutting Head Options
Single-head and double-head configurations are available to meet different processing and production requirements.
FAQ About CNC Vertical Grooving Machine
What is a CNC vertical grooving machine used for?
A CNC vertical grooving machine is used to create precise grooves in sheet metal before bending. It is commonly used for architectural metalwork, elevator components, metal doors, cabinets, enclosures, and other precision sheet metal products.
What sheet thickness can this machine process?
The machine is designed to process sheet thicknesses from 0.5 to 4 mm.
What is the maximum sheet size?
The machine supports sheet lengths from 600 to 4000 mm and sheet widths from 20 to 1600 mm.
What is the repeat positioning accuracy?
The Y and Z axes provide repeat positioning accuracy of up to ±0.02 mm.
What is the maximum X-axis moving speed?
The maximum X-axis moving speed is 100 m/min.
Is a double cutting head available?
Yes. Single-head and double-head configurations are available to meet different production requirements.
